Lumina Checkweigher


A next-generation checkweigher designed to guarantee accuracy, efficiency and smooth integration into modern production lines

Why Choose the Lumina Checkweigher

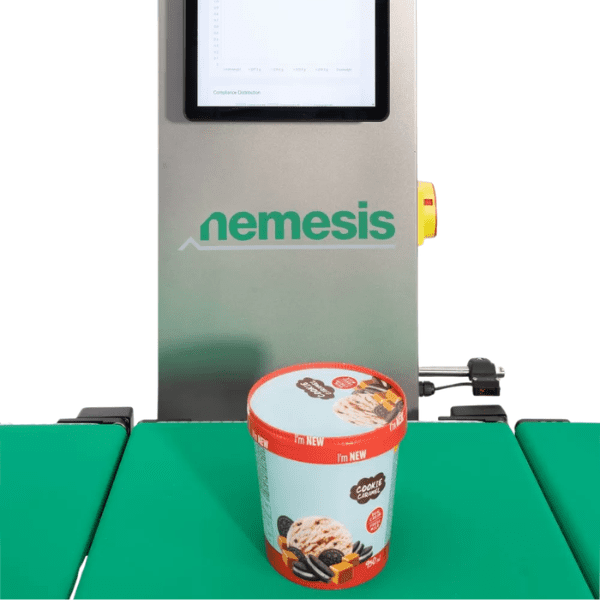

precision performance iconThe dynamic weighing technology eliminates the need for complex auto-calibration or product learning. Lumina accurately detects the real product weight in real time, regardless of its shape, size or positioning on the conveyor.

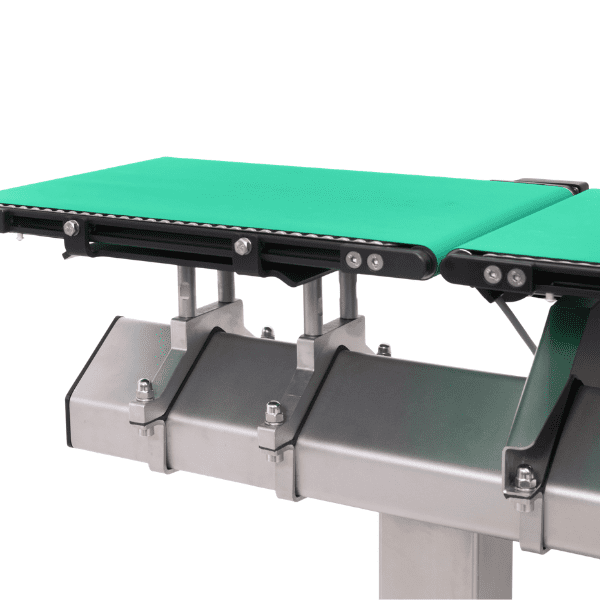

flexible configuration iconWith multiple conveyor configurations and accessory options, Lumina easily adapts to different product types and line layouts. Its modular structure enables customisation according to specific production needs, optimising both available space and operational efficiency.

regulatory compliance iconFully manufactured in stainless steel and designed for fast and efficient sanitisation, Lumina supports compliance with strict industrial regulations and meets the safety standards required in modern production facilities.

Technical Information

Capacity From 5 g to 8 kg
Verification Division ≥ 0.1 g
Display Resolution “d” ≥ 0.01 g
Accuracy (3σ) ≥ ± 0.005 g
Throughput ≤ 600 ppm
Conveyor Speed ≤ 120 m/min
Power Consumption ≤ 0.3 kW
Configuration From 1 to 6 conveyors
IP Protection IP65 (IP69K optional)
Height From 700 mm to 1100 mm
Conveyor Width From 110 mm to 400 mm
Conveyor Length From 150 mm to 550 mm

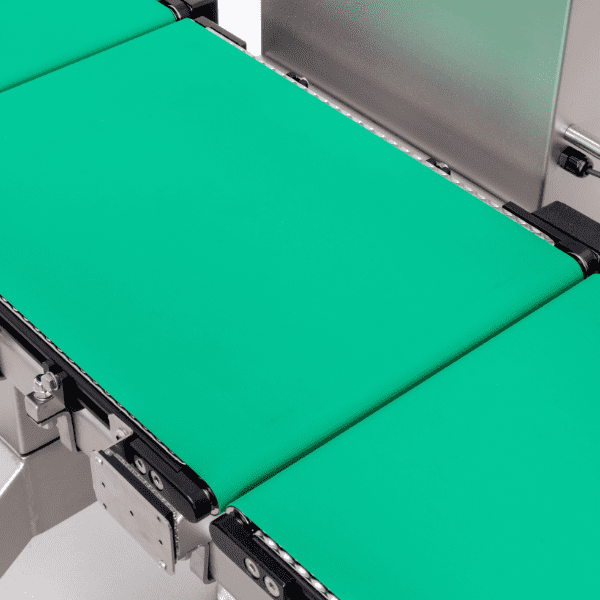

Conveyor Type Polyurethane belt – Modular plastic – V-shape
