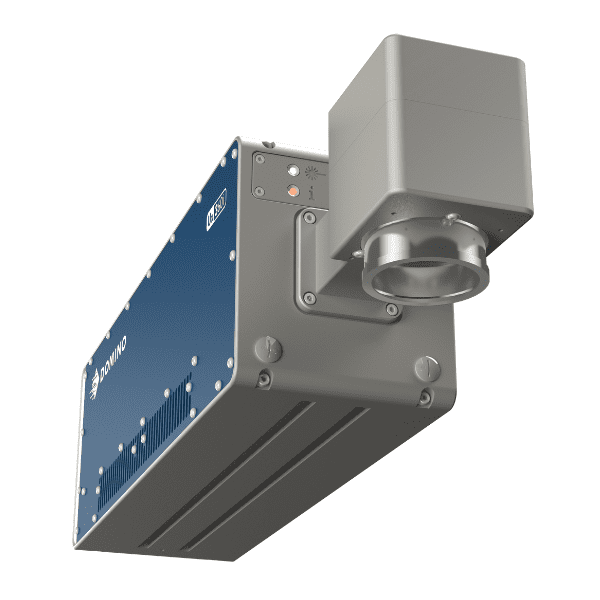

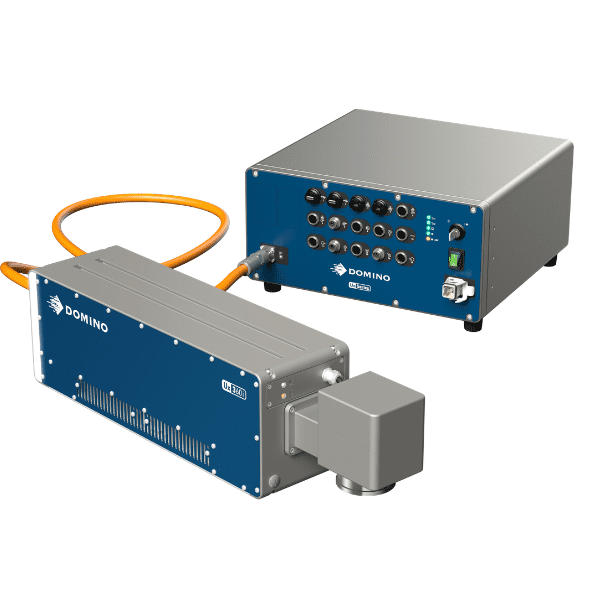

Domino Ux360i UV Laser Marker
Efficient UV laser technology for advanced packaging applications

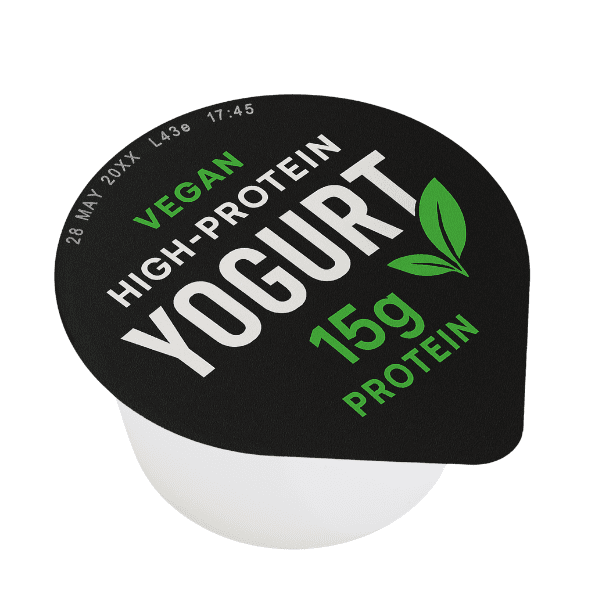

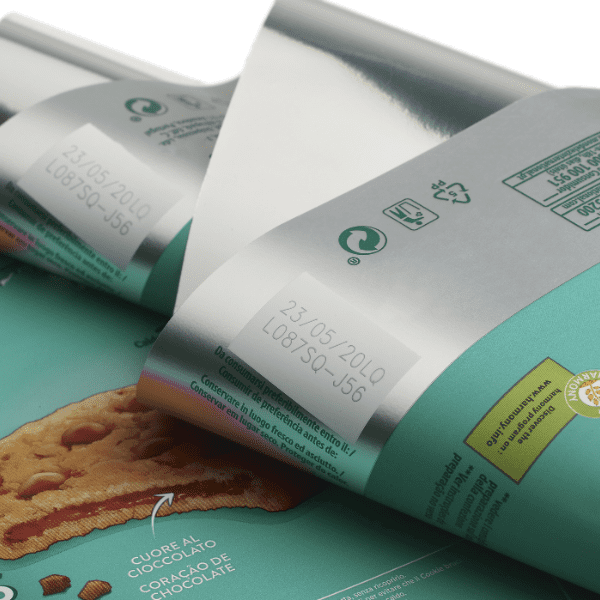

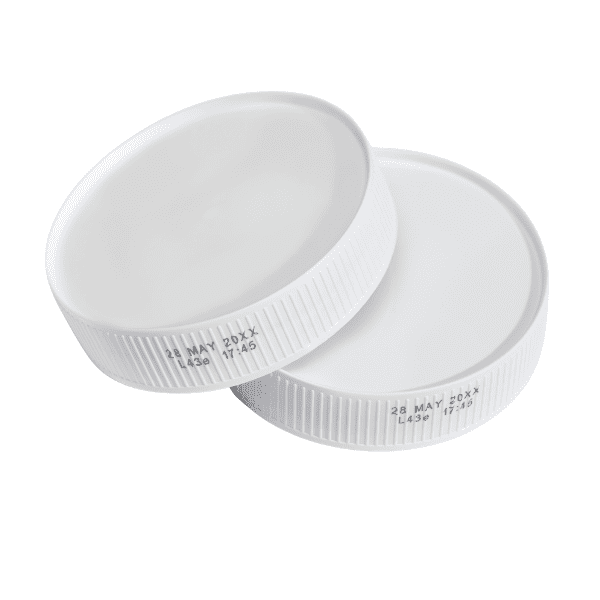

The Domino Ux360i UV laser marker is engineered to generate permanent product identification with excellent visibility and precise code placement on innovative packaging materials, including light flexible films and recyclable mono-plastic substrates.
Its UV laser process allows direct interaction with the surface layer through a photochemical marking method, preventing material stress or structural damage. This ensures the original quality of the packaging is preserved, even on delicate or highly sensitive materials.
Domino Ux360i performs exceptionally well on high-speed packaging lines and demanding industrial environments, offering the flexibility required for straightforward installation across different production layouts. The solution includes more than 50 standard beam delivery arrangements, alongside numerous tailored configuration possibilities for specialised applications.
Connectivity and operation are designed for efficiency: Ux360i integrates seamlessly with ERP, WMS and MES infrastructures, while the browser-based interface provides simple, responsive and intuitive line management.
Main Advantages Of Domino Ux360i
The Domino Ux360i UV laser marker is created for durable industrial coding, providing high-definition contrast and dependable precision on modern packaging surfaces, including ultra-thin films and recyclable mono-material packaging.
Ux360i is designed for rapid production environments, combining installation flexibility with more than 50 beam positioning options to simplify integration into complex manufacturing systems.

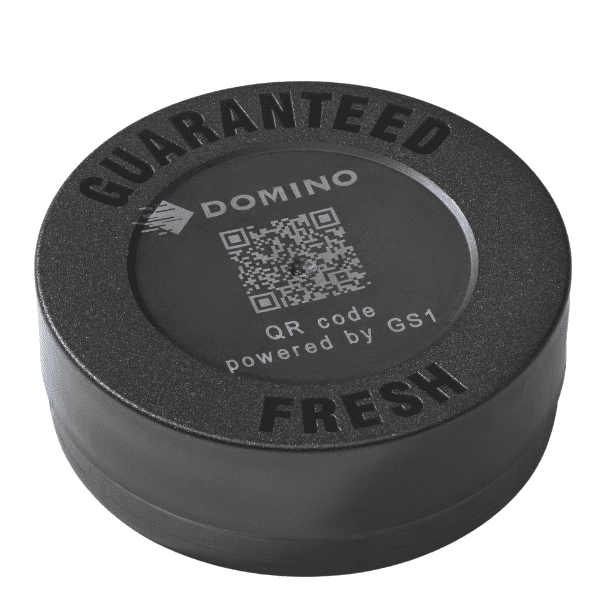

Developed for strict industrial production standards, the system supports FDA and GMP compliance requirements and enables GS1 and 2D code management for enhanced traceability performance.

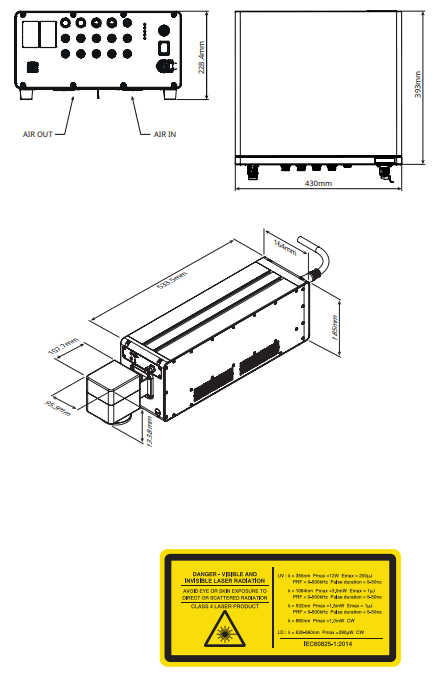

Technical Details
| Laser type | |
|---|---|
| Laser technology | UV |
| Laser source | 5 W |
| Coding format | |

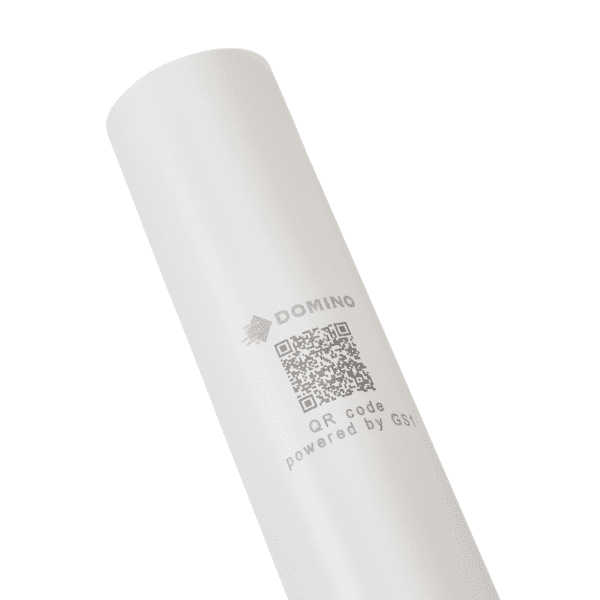

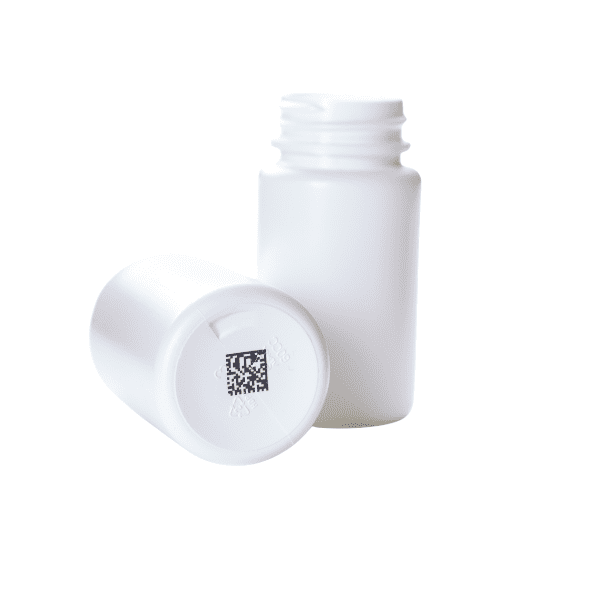

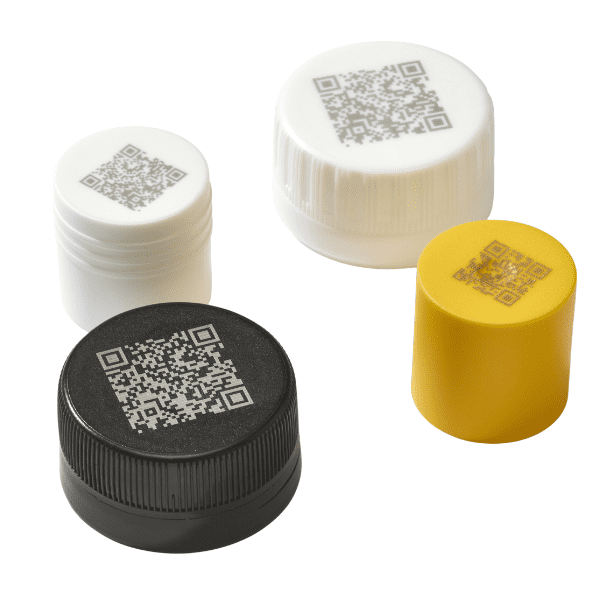

| Marking content | Laser-optimised characters for high-speed marking and standard industrial characters. Graphics, logos, standard machine-readable industrial code formats (1D, 2D) (DataMatrix, GS1, QR). Intuitive support for GS1 Digital Link. Traceability support with serialisation, sequential and batch numbering data. Synchronised clock / Network Time Protocol (NTP) support |
| Focal length of high-speed scan head | from 80 mm to 480 mm |
| Marking field of high-speed scan head | from min. 55×55 mm² to max. 330×330 mm² |
| Advanced functions | Pilot laser, Aim & Code |
| User interface | |
| User interface | Web user interface, multiple access points in parallel, optional 10.1″ TouchPanel |
| Interface options | Domino Cloud Interface (DCI), Domino Coding Automation |
| System specifications | |
| Scan head orientations | Wide range of scan head orientations, including a 360° rotatable variant. Over 50 beam orientation variants. Additional support for customised solutions and integration. |
| Protection rating | Laser head: IP65** Controller: IP55 |
| Operating temperature | 5 °C – 40 °C |
| Ambient humidity | 20–80% non-condensing |
| Electrical supply | multi-voltage 90-264 V, 50/60 Hz |
| Inputs and outputs, interfaces | |
| Inputs/outputs | Multiple inputs and outputs are available, e.g. extractor, encoder, product detection (NPN, PNP), beacon and interlocks, standard GPIO, additional optional GPIO available. |
| Interfaces | Ethernet, USB, Dynamark protocol, EtherNet/IP™ |
| Options | |
| Accessories | Extraction, air knife for lens cleaning, multiple brackets, cables and supports for integration |
| Application certifications | CE***, UKCA, CB / Complies with requirements: NRTL, RoHS, FDA, EMC, FCC |
* Subject to regional availability
** Excluding the cooling section where the fan and heat sink are located
*** Partly completed machinery pursuant to the Machinery Directive (2006/42/EC), CE marking according to RoHS (2011/65/EU) and EMC (2014/30/EU)
