Domino Gx-OEM Thermal Inkjet Printer
The OEM Thermal Inkjet Coding Solution

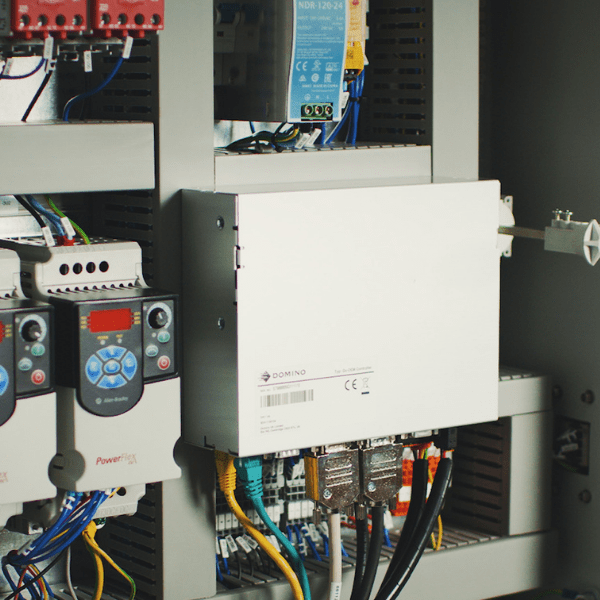

The Domino Gx-OEM is a true “install-and-forget” TIJ system, made for smooth integration with packaging equipment. This model is engineered for mounting inside control cabinets due to its compact footprint: 6.4 × 20 × 15.9 cm.
All settings and message editing can be handled directly by operators through the HMI. The slim printheads guarantee simple installation in any production environment and can be positioned up to 25 meters away from the main unit.
Advanced smart features in the Domino Gx-OEM provide remote status checks via touchscreen panel or web browser. In addition, there is automatic ink cartridge detection and auto-configuration of ink parameters for perfect print results every time.
Why Choose Domino Gx-OEM?

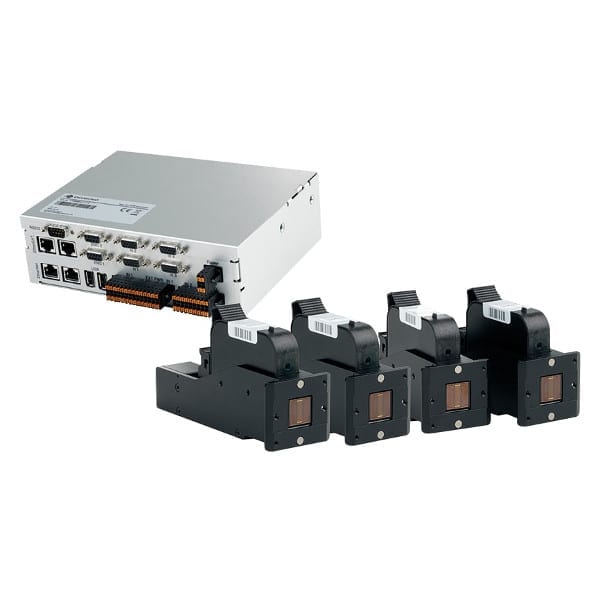

The Domino Gx-OEM lets one controller operate up to four printheads for printing heights up to 104.3 mm. It’s perfect for individual codes or for simultaneous printing across multiple production lines.
Serialization and Track & Trace are delivered through the Dynamark protocol, which meets 21CFR Part 11 and comes with full audit trail and user access management as well as validation files. Coding Automation makes it possible to send coding data directly from databases and change formats automatically via ERP or MES systems.
The monitoring dashboards provide live data on printer status. Domino Cloud support allows for remote diagnostics and real-time monitoring.
In addition, user permissions are fully configurable so you can always ensure maximum system security.
Technical Information
The Domino printers are certified for worldwide sales in over 100 countries. Certifications include CE, NRTL, CB, and FCC 47CFR Part. 15B.
Gx PRO: Ready for the New Era of 2D Codes
The new Domino Gx PRO printheads have been developed to support the transition to GS1 Digital Link and information-rich 2D codes. With a print height of up to 23 mm, high resolution, and strong contrast, they enable the production of reliable, easy-to-read codes even on high-speed production lines.
Designed to deliver speed, compliance, and reduced waste, Gx PRO printheads make it possible to incorporate variable data such as batch numbers, expiry dates, and traceability information into 2D codes, supporting more effective controls throughout the supply chain. Seamless integration with Domino R-Series vision systems also enables automatic verification of every code directly on the production line.
Ideal for the food, pharmaceutical, and direct packaging printing sectors, Gx PRO printheads provide a future-ready solution for evolving traceability requirements and regulatory compliance.
| Controller Dimensions | Height: 64 mm / Depth: 200 mm / Width: 159.2 mm / Weight: 0.692 kg |
| Printhead Dimensions | Height: 152 mm / Depth: 50.9 mm / Width: 28.5 mm / Weight: 0.22 kg |
| Printhead Cable Length | 3, 6, 12, or 25 m – 1.5 m variant available |

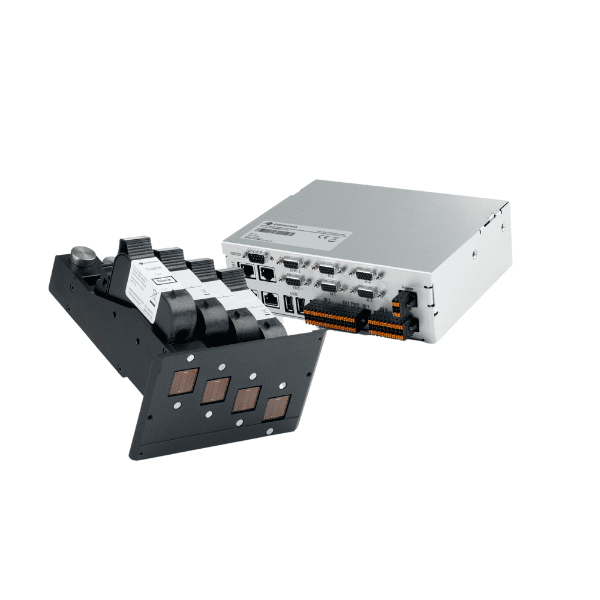

| Printheads Controller | Up to 4 printheads for greater message height or single prints on 4 different line positions |
| Print Height | 1 printhead: up to 26.1 mm / 2 printheads: up to 52.2 mm / 3 printheads: up to 78.2 mm / 4 printheads: up to 104.3 mm |
| Print Speed and Resolution | 300 m/min at 60 dpi / 30 m/min at 600 dpi |
| Connection Options | 2 encoders, I/O for alarms, photocells or other, 2 USB (type A), RS232C, 2x LAN |
| Electrical Connector | S2C 3.5 mm terminal block, 4-pin |
| Power Connector | 24V DC, 4 A |
| Operating Temperature | 0° – 40°C |
| Relative Humidity | 20 – 80% RH (non-condensing, 10°C increase per hour) |
| Controller Casing | Stainless Steel |
| Inks | A wide selection of fast-drying water- and solvent-based inks for porous and non-porous materials; available in black, colored, and specialty versions |
| i-Tech Features | Automatic ink cartridge detection, automatic parameter settings, and automatic ink level recording |
| Communication Protocols | Ethernet / Dynamark, EDC (serial, TCP, USB) |
| User Interfaces | QuickStep through operator panel |
