Brother TJ-4522TN Label Printer


High-speed industrial printer with integrated rewinder

The Brother TJ-4522TN is a robust label printer designed for demanding industrial environments. With print speeds of up to 305 mm/sec and support for 600 m thermal ribbons, it ensures long, uninterrupted print runs. Its built-in rewinder and easy-to-use color touchscreen simplify daily workflows.

Connectivity options include USB, Ethernet, RS-232, and optional Wi-Fi/Bluetooth, with full support for printer languages such as ZPL II, EPL2, and DPL. Perfect for cartons, pallets, plastics, metals, glass, and cardboard, and capable of handling both 1D and 2D barcode applications.

Why Choose Brother TJ-4522TN

Touchscreen icon

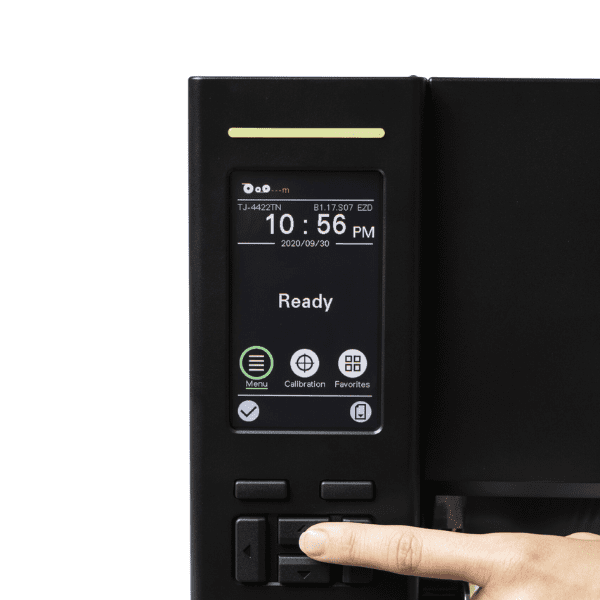

Color touchscreen
Intuitive interface designed to simplify control and speed up daily tasks.

High-speed printing icon
High-speed printing
Delivers up to 305 mm/sec, perfect for large-scale production and high-volume labelling.

Connectivity icon
Extensive connectivity
USB, serial, Ethernet, with optional Wi-Fi/Bluetooth; compatible with ZPL II, EPL2, DPL.

Technical Specifications

Max label width 114 mm
Ribbon length 600 m
Max print width 104 mm
Max print length 11,430 mm
Print speed 305 mm/sec (12 ips)
Resolution 300 dpi
Technology Thermal transfer / Direct thermal
Barcode support 1D: Code128, EAN, ITF14, Code39, etc.
2D: QR Code, PDF417, GS1 DataMatrix, AZTEC, etc.
Media compatibility Pallets, boxes, cardboard, glass, plastic, metal
Software Bartender Ultra Lite Edition
Dimensions (W x H x D) 276 × 412 × 502 mm
Weight 18.9 kg
