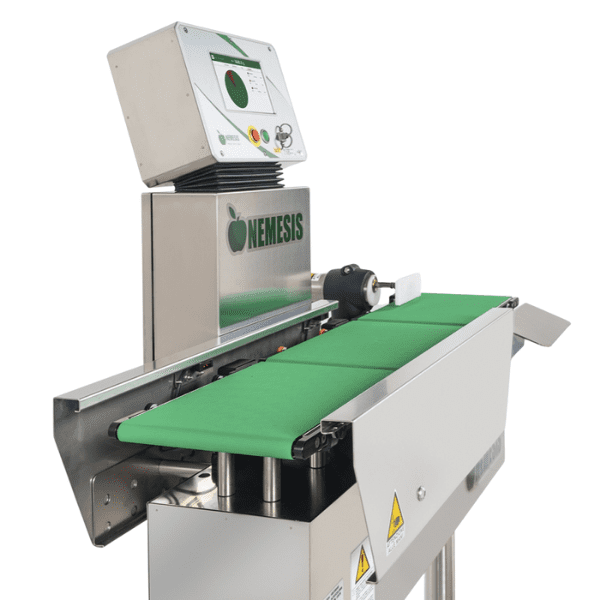

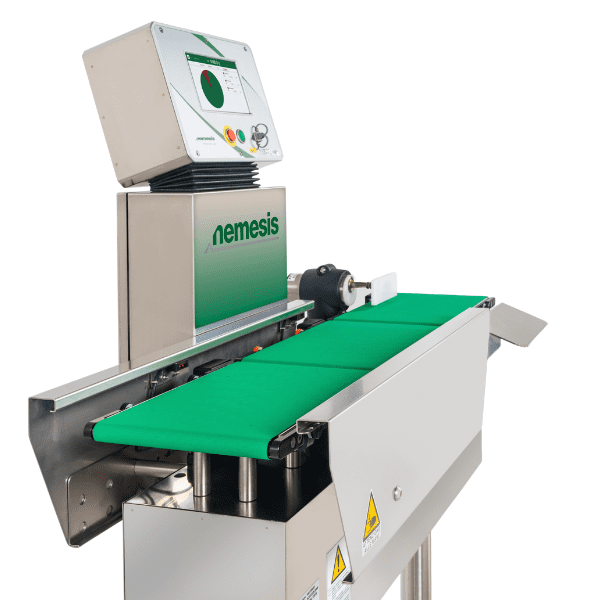

Nemesis C Series Checkweigher


The Ideal Solution for Affordable Quality Assurance in Confined Areas

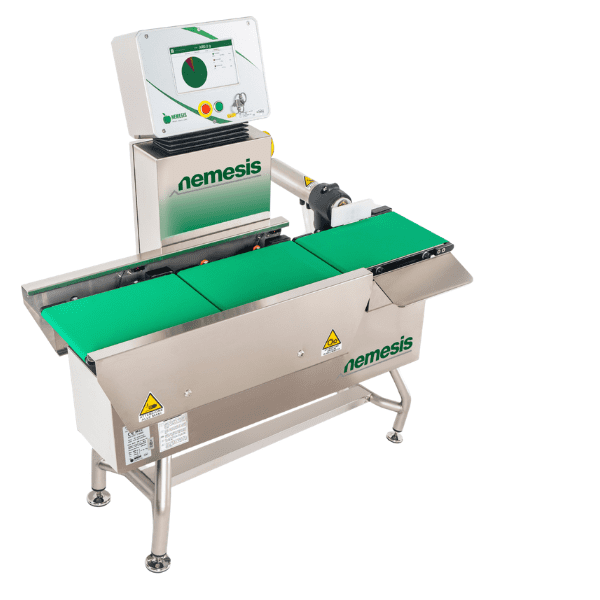

The Nemesis C Series checkweigher, belonging to the HSC350 range, is a space-saving, modular device engineered to provide thorough quality control in compact production environments at minimal cost. In addition, this checkweigher meets MID standards and is supplied with a CE Certificate.

Thanks to its distinctive structural design—featuring flat surfaces for easy access—the system can be sanitized and cleaned both rapidly and efficiently.

Why Opt for the Nemesis C Series Checkweigher?

icona raggiungimento obbiettivi

The innovative “Real-Weight” dynamic system allows HSC350 checkweighers to function without requiring any calibration or learning procedures for products.

icona tipi di prodotto

Offered in several versions from 1 up to 5 conveyor belts, with working widths between 90 and 400 mm, these checkweighers can manage a wide range of product types.

icona rispetto normativ

The Nemesis C Series checkweigher is certified to comply with MID (Directive 2004/22/EC, dated 31/03/2004) and has held a CE Type Certificate since 27/10/2006.


Technical Info

Maximum Capacity

1,500 g (HSC350/01)
3,000 g (HSC350/03)
6,000 g (HSC350/06)

Minimum Capacity

15 g (HSC350/01)
30 g (HSC350/03)
60 g (HSC350/06)

Resolution (d)

≥ 50 mg (HSC350/01)
≥ 0.1 g (HSC350/03)
≥ 0.2 g (HSC350/06)

Division (e)

≥ 0.5 g (HSC350/01)
≥ 1 g (HSC350/03)
≥ 2 g (HSC350/06)

Number of Divisions

Up to 4,000 (HSC350/01)
Up to 4,000 (HSC350/03)
Up to 4,000 (HSC350/06)
