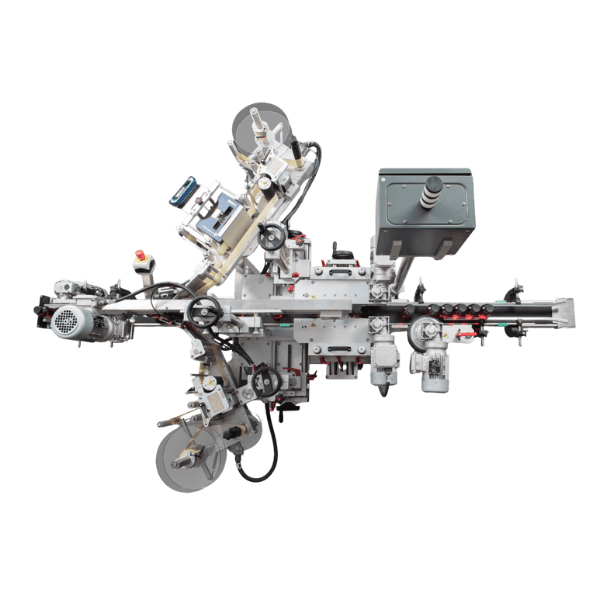

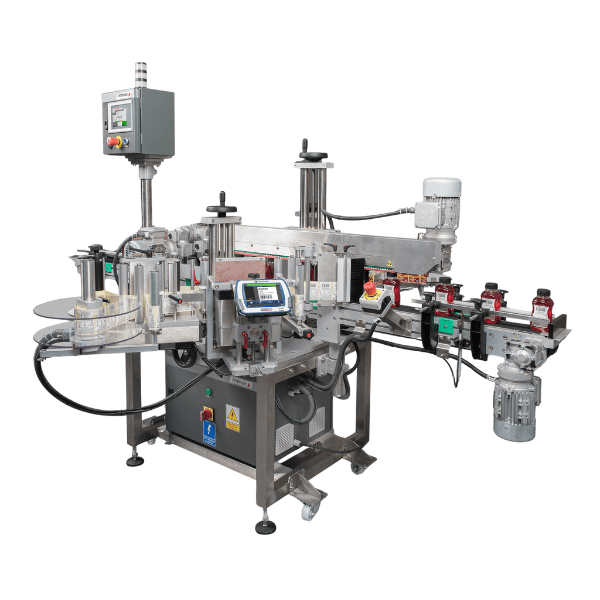

Intrex Set 2202 PLUS – Double-Sided Labelling


Flexible front and back labelling for bottles and containers

Intrex Set 2202 PLUS offers a smart and operator-friendly solution for applying labels to both sides of products – perfect for bottles, cans, and a wide range of packaging.

The system includes a 5” colour touchscreen, giving operators direct access to head adjustments, line speed, and other key parameters. Thanks to its compact, mobile design, integration into existing production lines is fast and simple.

A thermal transfer printer can also be added, enabling QR code or variable data printing directly on labels.

Why choose Intrex Set 2202 PLUS?

Easy integration icon
Easy integration
Compact, mobile unit designed for smooth installation on existing lines.

Printer feature icon
Extra functionality
Optional thermal transfer printer for QR codes and variable data.

User interface touchscreen icon
Operator-friendly
5” touchscreen makes adjusting speed and dispenser settings easy.

Technical Info

Label placement Front and back sides
Capacity Up to 60 products/min
Touchscreen 5” colour display, intuitive control
Label width Max. 220 mm
Label roll diameter Max. 300 mm (optional 350 mm)
Core size 400 mm or 76 mm
Power supply 230 VAC, 50 Hz
Compressed air 0.6 MPa
