Domino Cx350i Large Character Inkjet Printer
The Ideal Choice for Industry 4.0 Secondary Packaging Coding
The Domino Cx350i is a smart large character inkjet printer designed to maximize the potential of direct coding on secondary packaging materials.
With the Domino Cx350i inkjet printer, you are able to boost code quality and cut operational costs. Print graphics, codes, and text directly onto cardboard, eliminating the need for pre-printed packaging or additional labels.
Selecting the Domino Cx350i is an eco-conscious decision, featuring environmentally friendly inks derived from vegetable oils. Its advanced system allows you to fine-tune print resolution, ensuring outstanding code readability with low ink usage.
The integrated coding automation software delivers maximum productivity and is fully compatible with barcode readers and vision inspection systems for flawless code legibility on every box.
Why Select the Domino Cx350i Large Character Inkjet Printer?
The extensive array of connectivity solutions enables seamless integration with existing technologies using standard PLC interfaces, such as Ethernet/IP™. No compressed air or filter replacement is needed for operation.
Easy transfer of data and messages for connection to various packaging and processing equipment. The large-capacity ink reservoir provides extended runtime and reduces operator interventions.
The Domino Cx350i large character inkjet printer does not use compressed air, produces zero label waste, and runs solely on vegetable oil-based inks for consistently high-contrast results. Ink can be refilled during production without stopping the printer.
Variants
The Domino Cx350i large character inkjet printer is offered with Horizontal and Vertical printhead models, expanding the available print area for secondary packaging. Their compact construction allows straightforward installation on production lines and is also ideal for marking gypsum boards.

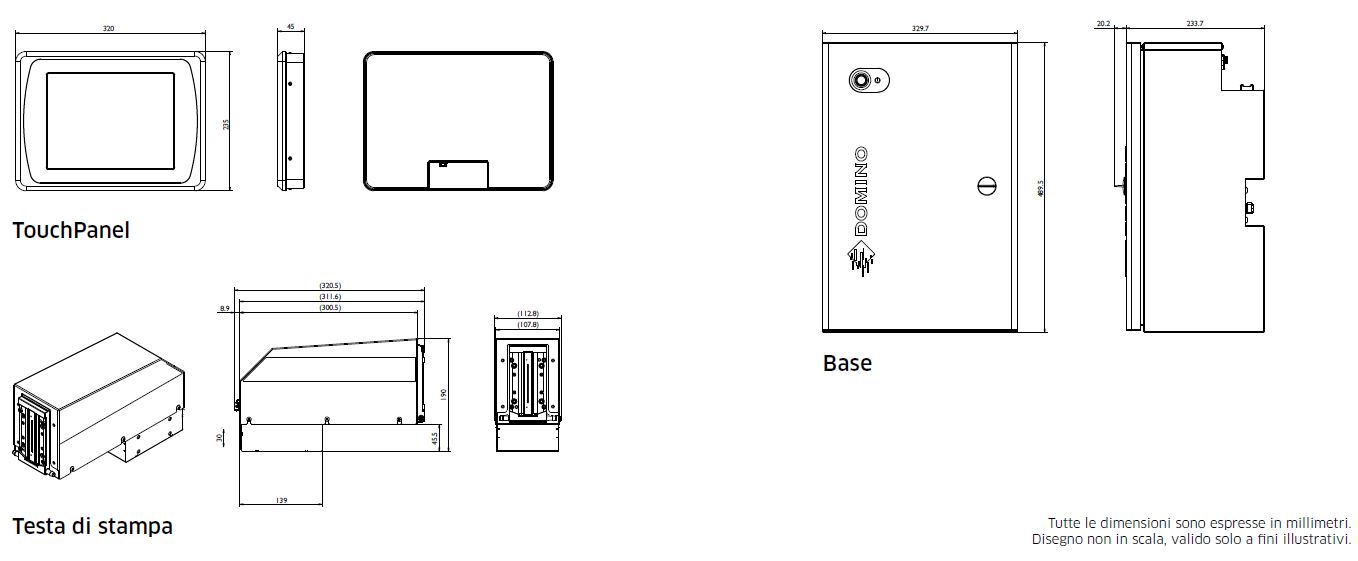

Technical Information
Cabinet
| Cx-Base 2 Heads | Cx-Base 4 Heads | |
|---|---|---|
| Printheads (max.) 2 Internal Reservoir: 440 ml |
Printheads (max.) 4 Internal Reservoir: 760 ml |
|
| Dimensions | Length: 329.7 mm / Depth: 233.7 mm / Height: 489.5 mm
Cx-2 Heads Base: 13.55 kg, Cx-4 Heads Base: 15.03 kg (excluding power button, stop, connector cover, bracket) |
Length: 329.7 mm / Depth: 233.7 mm / Height: 489.5 mm
Cx-2 Heads Base: 13.55 kg, Cx-4 Heads Base: 15.03 kg (excluding power button, stop, connector cover, bracket) |
| Electrical Requirements | Input: 100-240VAC, 50-60 Hz, Heads: 2A | Input: 100-240VAC, 50-60 Hz, Heads: 3A |
| Connection Options | 1 x encoder input, 1 x I/O connector (4 x product presence sensor input, 5 x general-purpose input, 8 x general-purpose output, 3 x 24VDC output), 2 x USB (type A), 1 x RS232C, 2 x RJ-45 | 2 x encoder input, 2 x I/O connector (4 x product presence sensor input, 9 x general-purpose input, 12 x general-purpose output, 4 x 24VDC output, 3 x alarm contacts), 2 x USB (type A), 1 x RS232C, 2 x RJ-45 |
Printhead
| Dimensions | Length: 112.8 mm / Depth: 311.6 mm / Height: 190 mm / Weight: 4.22 kg |
| Electrical Requirements | 24VDC (supplied by the base cabinet) |
| Resolution | Horizontal max. 300 dpi, Vertical 150 dpi |
| Print Height | 65 mm max |
TouchPanel
| User Interface | 10.4” TouchPanel with QuickStep 3 software |
| Dimensions | Length: 320 mm / Depth: 45 mm / Height: 235 mm / Weight: 2.65 kg |
System Specifications
| Operating Temperature | 5°-40°C |
| Operating Humidity | 10%-90% RH (non-condensing, 10°C hourly increase) |
| Enclosure | Brushed stainless steel |
| Printhead and Cabinet Protection Rating | IP4X |
| Inks | High-contrast, eco-friendly vegetable oil-based inks available in 1.4 and 0.85-liter bottles |
| Communication | Ethernet / Dynamark protocols, EDC (serial, TCP, USB), optional: Ethernet/IP™ Protocol, Domino coding automation |
| Print Speed max. | 210 m/min. @100dpi; 100 m/min. @200dpi; 70m/min. @300dpi |
