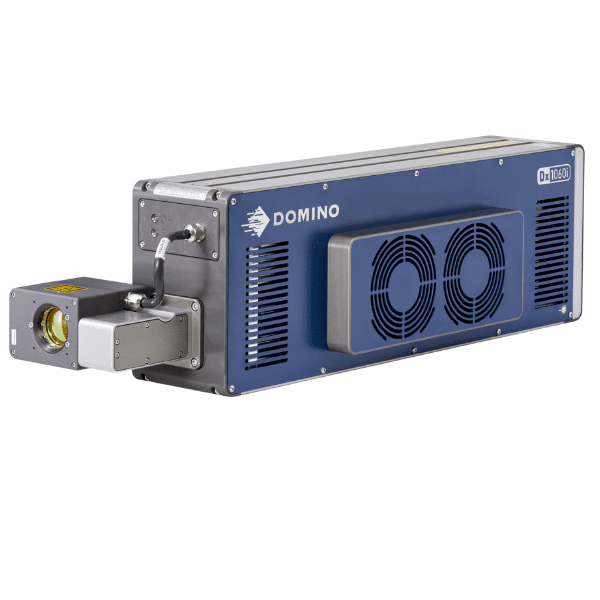

Domino Dx1060i Industrial CO₂ Laser Coder – 100 Watt


Domino Dx1060i: 100 Watt Laser Coder Built for Extreme Throughput

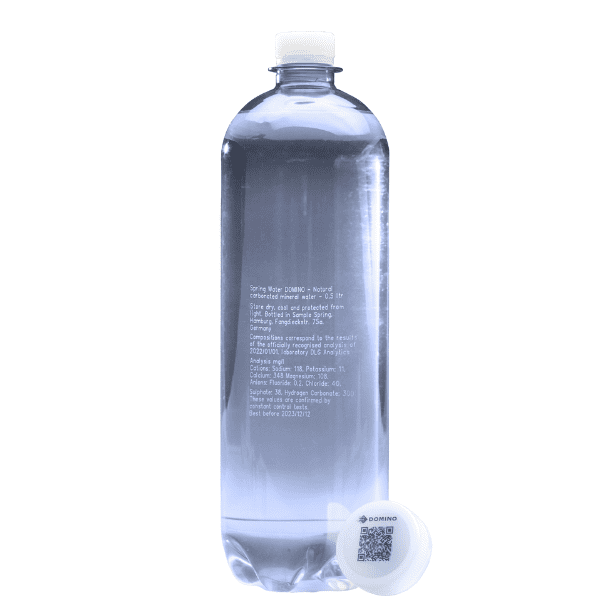

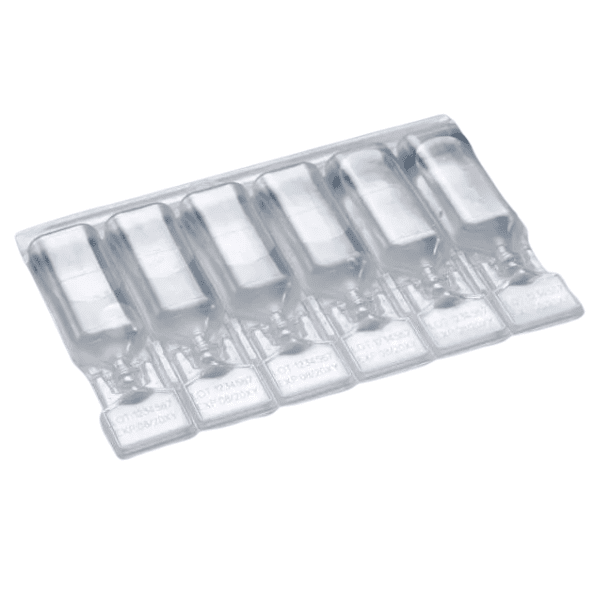

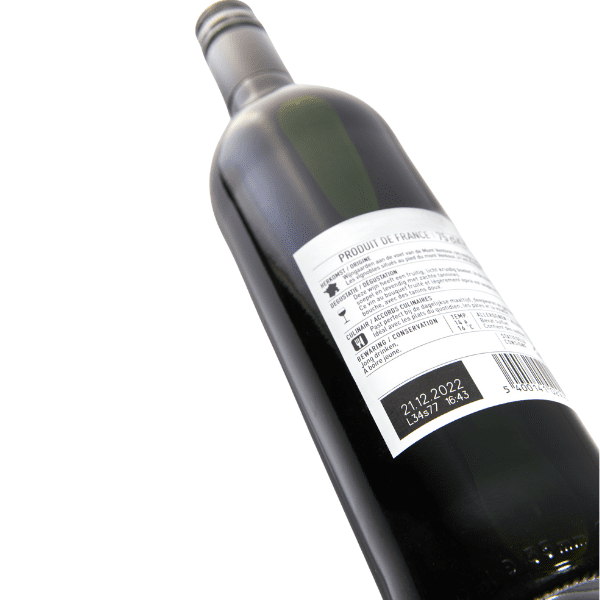

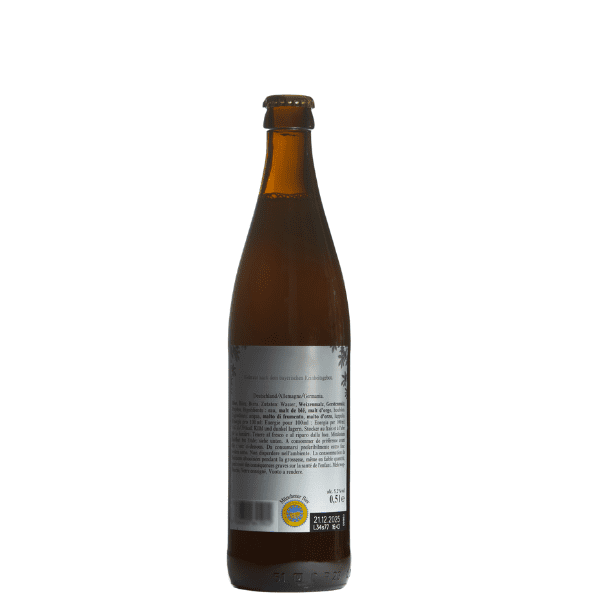

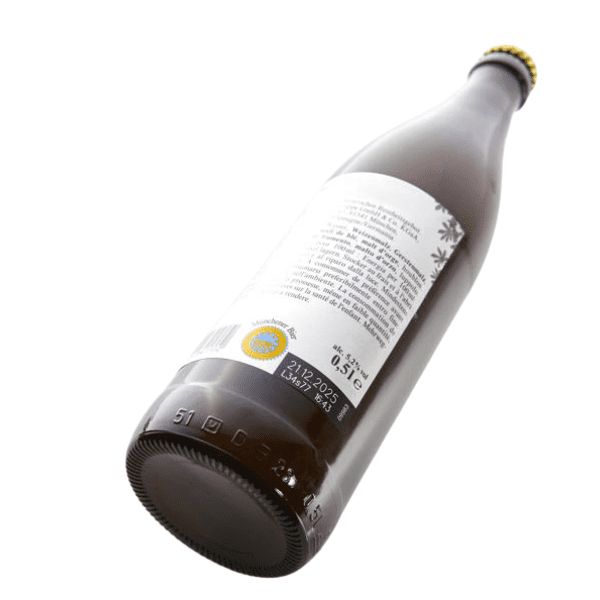

Domino Dx1060i is a 100 Watt CO₂ laser system engineered to deliver stable, crisp marking even under intense production pressure. Its high energy output enables precise, permanent codes on materials including PET, HDPE, glass, paper and multi-layer substrates, maintaining full accuracy even at elevated speeds. This makes it a top choice for fast industrial lines where traceability and long-lasting readability cannot be compromised.

The coder leverages advanced beam-control algorithms that boost marking speed by up to 30% compared to earlier generations while preserving code uniformity on every surface. It supports variable data, 1D/2D codes, and GS1 standards, together with serialisation and NTP synchronisation for accuracy-critical environments.

Despite its high output, the coder is designed to withstand harsh conditions: the marking head is available in IP54 or IP65, and the controller carries an IP55 rating, guaranteeing dependable operation in dusty, humid or washdown-prone areas. The system remains fully operational up to 45°C, ensuring continuous productivity on demanding lines.

With its long laser tube life and intelligent diagnostics, the Dx1060i keeps maintenance needs to a minimum.

Why Choose the Domino Dx1060i Industrial CO₂ Laser Coder

achievement icon
100 Watt CO₂ power for rapid production
High-energy output and refined optics deliver accurate, stable codes even on tough substrates.

integration icon
Flexible installation and integration
More than 50 optical setups, a 360° rotatable head, and compatibility with ERP, MES and industrial communication standards.

technical support icon
Smart monitoring with minimal servicing
Cloud-based diagnostics, automated coding tools and durable performance even in environments reaching 45°C.

Technical Information

Laser 100 Watt CO₂
Laser technology CO₂, wavelengths 9.3 μm, 10.2 μm, 10.6 μm
Expected lifetime 50,000 hours MTBF

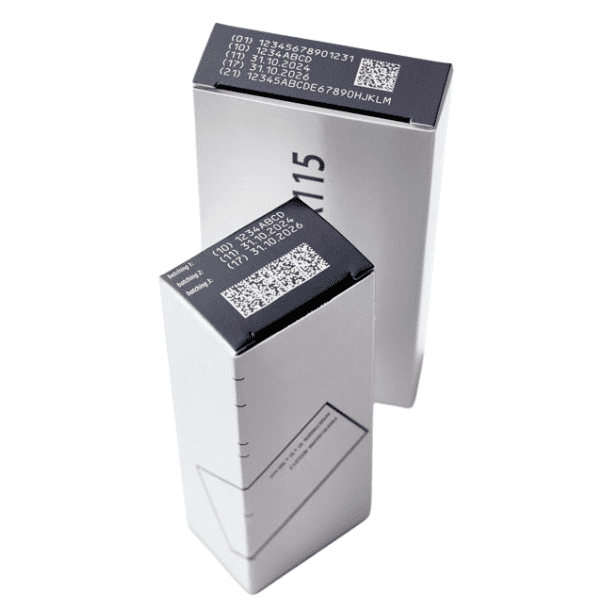

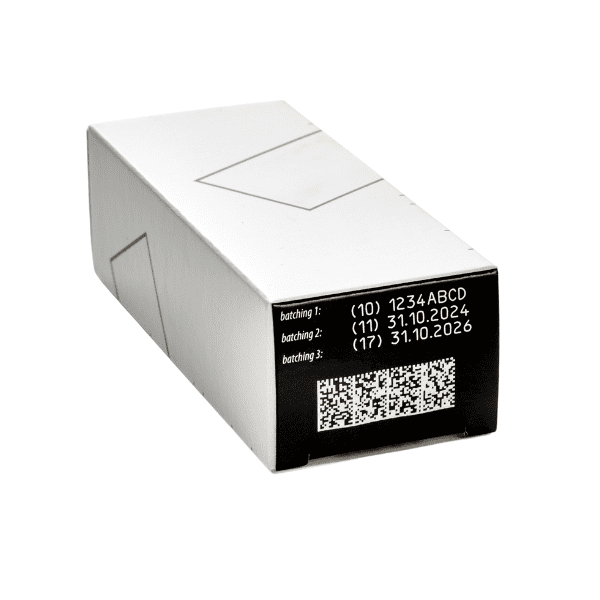

Supported content High-speed optimised fonts, 1D/2D codes (GS1, DataMatrix, QR), graphics, logos, variable data, serialisation
GS1 support GS1 Digital Link and GS1 traceability standards
Focal lengths From 80 mm to 600 mm
Marking field From 57×57 mm to 379×582 mm

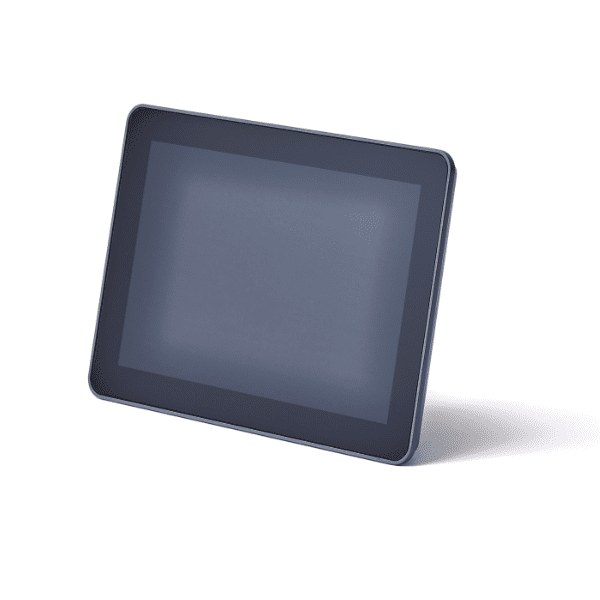

User interface Web-based interface; optional 10.1’’ touch panel
Head orientation 360° rotatable head with more than 50 optical configurations

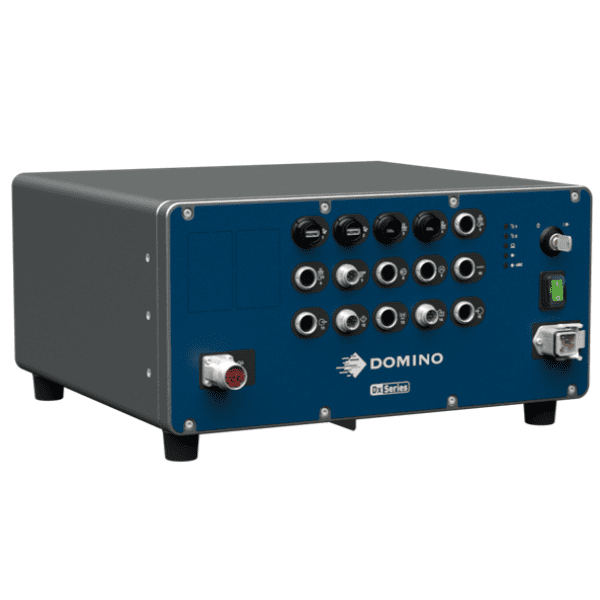

IP rating Laser IP54 (optional IP65), controller IP55
Operating temperature 5°C – 45°C
Operating humidity Max 90% RH non-condensing
Power supply 90–264 V, 50/60 Hz
Inputs/outputs Inputs/outputs for extraction, compressed air, chiller, encoder, product detection, beacon, interlock, GPIO
Interfaces and protocols Ethernet, USB, RS-232, EtherNet/IP™, EDC, Dynamark Protocol
Software features Automation, Domino Cloud, advanced security, external data capture
Accessories Extraction systems, airknife, mounts, brackets, cabling, dedicated optics

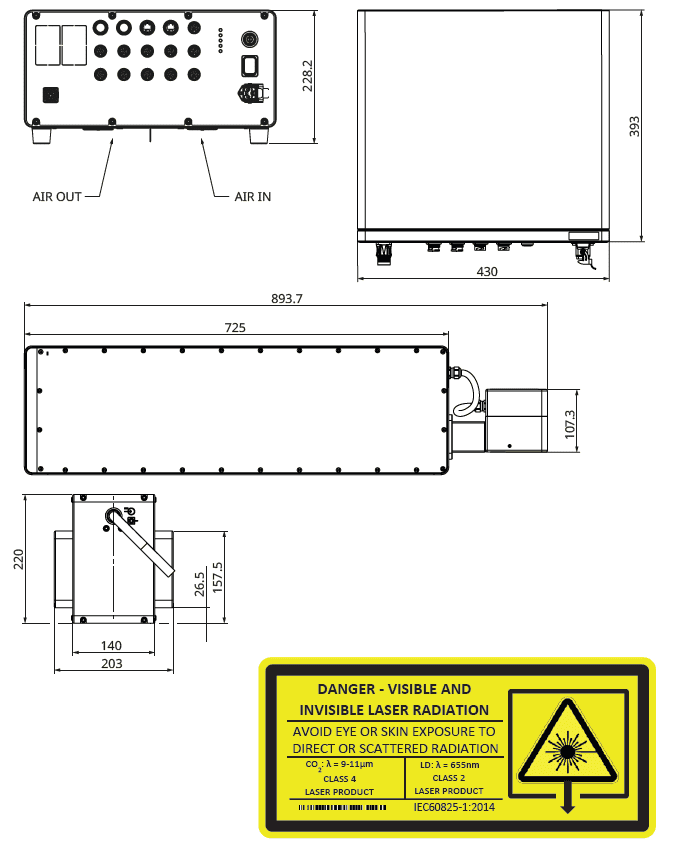

dx1060i-technical-drawings
