Domino X630i – Digital Single-Pass Printer


Fast single-pass digital printing for corrugated packaging

The Domino X630i is an advanced digital single-pass system purpose-built for corrugated board printing. It delivers speeds up to 75 meters per minute with a resolution of 600 x 600 dpi and handles sheet formats up to 1,600 x 3,000 mm—equivalent to 4,500 sheets each hour. The configuration includes a servo-driven feeder, vacuum sheet transport, plus flexible delivery choices for both stacked and bundled output.

Using Domino’s sixth-generation inkjet platform, the printer combines more than 40 years of development expertise. The integrated i-Tech CleanCap system automatically cleans and seals the print heads, reducing operator tasks and routine maintenance. i-Tech ActiFlow ensures continuous ink circulation for stability, while i-Tech StitchLink maintains precise alignment across all print heads to achieve sharp, consistent quality over the full sheet width.

With Domino AQ95 inks formulated with i-Tech PolyM technology, the printer produces outstanding results on coated and uncoated corrugated without primers or additional bonding agents. The X630i is an ideal solution for businesses requiring a durable, future-proof investment in digital corrugated printing.

Why Choose Domino X630i?

industrial sectors iconAutomatic print head cleaning and capping
Maintains nozzle performance, cuts start-up time, and minimizes operator input.

integration iconPrecision micro-motor alignment
Guarantees accurate positioning of print heads, delivering flawless quality across the full sheet.

print quality iconAQ95 CMYK inks
Compliant with EuPIA exclusion policy and suitable for diverse indirect food packaging uses.

Technical Information

Press modules Feeder, Transfer In, Plate cleaning, Plate inspection, Print section, Transfer Out, Dryer, Overprint varnish section
Technology Piezoceramic Drop-on-Demand inkjet, Infrared drying
Print speed 50 m/min – 75 m/min
Image resolution 600 dpi native with 3 grayscale levels
Sheet size range 508 x 762 mm to 1,600 x 3,000 mm
Maximum image size 3000 mm x 1345 mm
Media types Coated, Uncoated & Kraft – Thickness: E to BC flute
Ink CMYK water-based inks. EU/FDA, Nestlé, Swiss compliant
Workflow Esko DFE, Colour Pilot, Domino ScreenPro HS – including step & repeat, colour management, cropping, edge-to-edge printing, saturation and hot folders
File formats PDF 1.3–2.0; PDF/X-1a, PDF/X-3, PDF/VT
Environment Fully enclosed with dust and temperature control

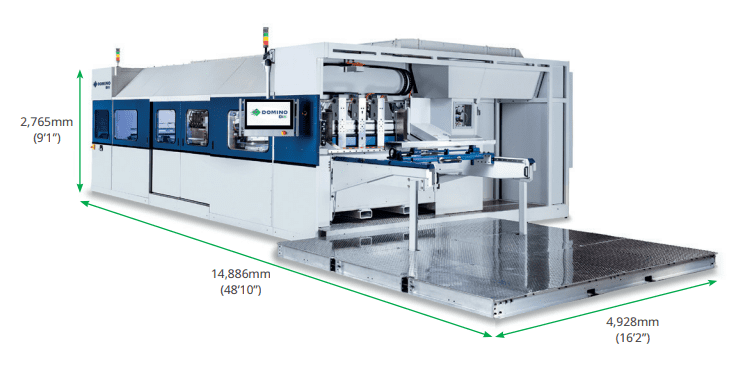

Dimensions Length: 14,886 mm
Width: 4,928 mm
Height: 2,765 mm
Weight Feeder: 5000 kg
Transfer In: 5455 kg
Print section: 7275 kg
Transfer Out: 5000 kg
Dryer: 3653 kg
Overprint varnish: 1814 kg
Total: 28,178 kg
Services Power: 440-480 VAC / 60Hz / 3-phase
Air: Minimum 100 psi (8 Bar)
No continuous water or air supply required
Drain: HVAC condensate

technical info domino x630i
