Domino Vx50i Thermal Transfer Printer
Flexible Packaging Coding Made Effortless
The Domino Vx50i thermal transfer printer is built to deliver high-performance coding on flexible packaging, addressing today’s manufacturing needs as well as tomorrow’s while lowering production stoppages and cutting down Total Cost of Ownership (TCO).
Offering four advanced ribbon-saving functions, the Vx50i is engineered to maximize ribbon efficiency and decrease maintenance and operational expenses, as it is completely electric and operates without compressed air. With integrated software, the Vx50i works independently from any external interface, streamlining control over production.
Changing the ribbon is fast and hassle-free thanks to a quick-release spool system and a lightweight cassette design.

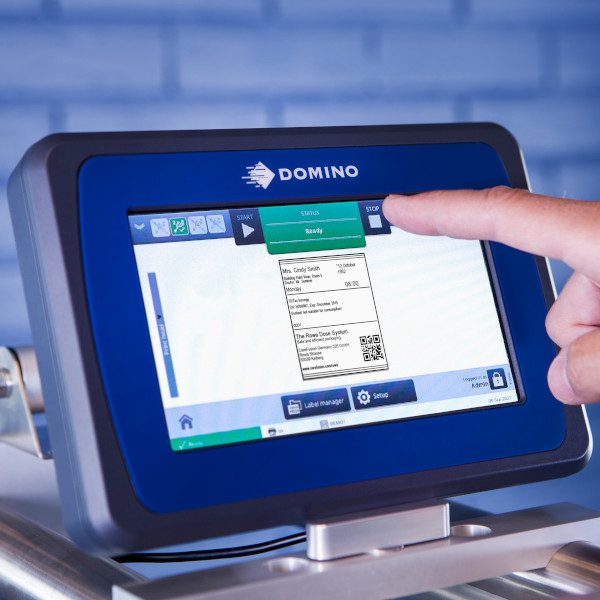

Its compact footprint allows for easy installation on any production line. The optional 7” TouchPad ensures a simple, intuitive interface for label creation and editing.
When paired with Domino’s R-Series vision systems, the Vx50i delivers automated print inspection, monitoring print presence, alignment, and readability. This ensures every item is properly coded so operators can focus on other priorities.
Why Select the Domino Vx50i Thermal Transfer Printer?
Utilizing four ribbon-saving features, Domino Vx50i sharply reduces ribbon waste, making flexible packaging coding more cost-efficient and sustainable.
Vx50i is 100% electric, so there’s no need for compressed air, which helps drive down both upkeep and running costs.
Thanks to its smart built-in software, Vx50i operates with no need for an external interface, making everyday production and workflow management even simpler.
Technical Information
Domino printers meet regulatory standards and are distributed across more than 100 nations. Certifications include: CE, NRTL, CB, FCC 47CFR Part. 15B.
Technical Specifications
| Intermittent Mode (IM) | Continuous Mode (CM) | |
|---|---|---|
| Printing Mode | ✓ | ✓ |
| Print Resolution | 300 dpi | 300 dpi |
| Printhead Width | 32 mm | 32 mm |
| Print Area (32/53 mm printhead) | 32×55 mm | 32×55 mm |
| Maximum Ribbon Length | 770 m (AR) | 770 m (AR) |
| Printing Speed | Up to 400 mm/sec | Up to 400 mm/sec |
| Maximum Print Frequency | 4 prints/sec | 4 prints/sec |
| Connectors | 3+1 USB, 1RJ45, 1 GPIO, 1 encoder | 3+1 USB, 1RJ45, 1 GPIO, 1 encoder |
| Supported Print Formats | EAN, GS1, UCC, QR Code, Data Matrix, Han Xin, ITF, Code 128, text, graphics, 1D, 2D codes etc. | EAN, GS1, UCC, QR Code, Data Matrix, Han Xin, ITF, Code 128, text, graphics, 1D, 2D codes etc. |

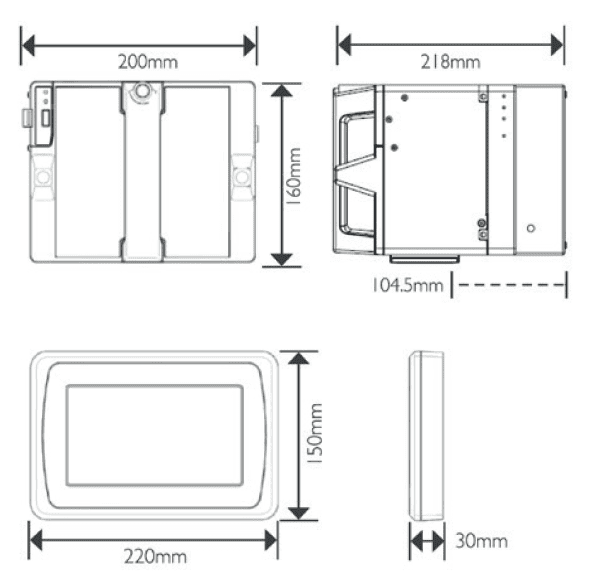

| Dimensions | 200 mm (W) x 160 mm (H) x 218 mm (D) | 200 mm (W) x 160 mm (H) x 218 mm (D) |
| Weight | 5.9 kg | 5.9 kg |
| Cartridge Weight | 0.9 kg (without ribbon) | 0.9 kg (without ribbon) |
| Fully Electric | No compressed air required | No compressed air required |
| Power Supply | 100 to 240 VAC, 50/60 Hz | 100 to 240 VAC, 50/60 Hz |
| Operating Temperature / Humidity | 5 to 40°C / 20% to 80% RH | 5 to 40°C / 20% to 80% RH |
| Ribbon Saving Modes | Economy, Retraction, Column | Economy, Retraction, Column |
| Protocol | Dynamark | Dynamark |
| Function Pack (Optional) | Serialization, Advanced Security, Promotional Coding | Serialization, Advanced Security, Promotional Coding |
| Tablet Connection | Via Wi-Fi dongle | Via Wi-Fi dongle |
| PC Connection | Network cable | Network cable |
| TouchPad (Optional) | 7” TouchPad, Dimensions: Width 220 mm x Height 150 mm x Depth 30 mm, Multi-language support | 7” TouchPad, Dimensions: Width 220 mm x Height 150 mm x Depth 30 mm, Multi-language support |
| Support Frame (Optional) | Full range of support stands for all needs | Full range of support stands for all needs |
