Domino Vx150i Thermal Transfer Printer
Quick, Seamless Coding for Flexible Packaging
The Domino Vx150i thermal transfer printer stands out as the perfect choice for businesses that need straightforward, dependable, and high-speed printing and marking on flexible packaging.

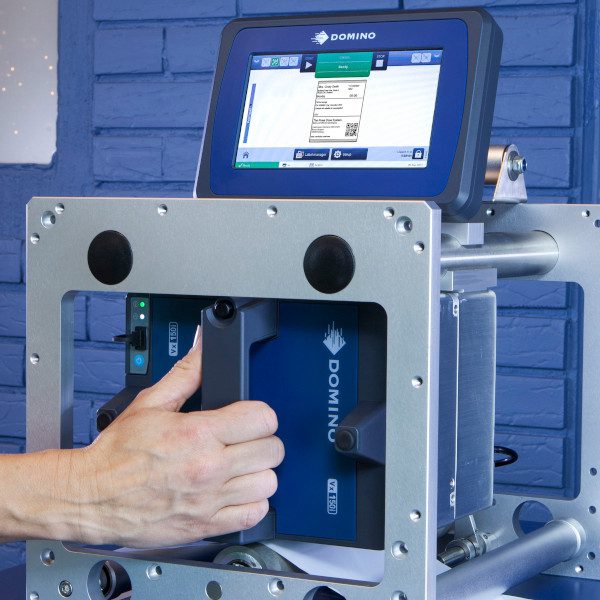

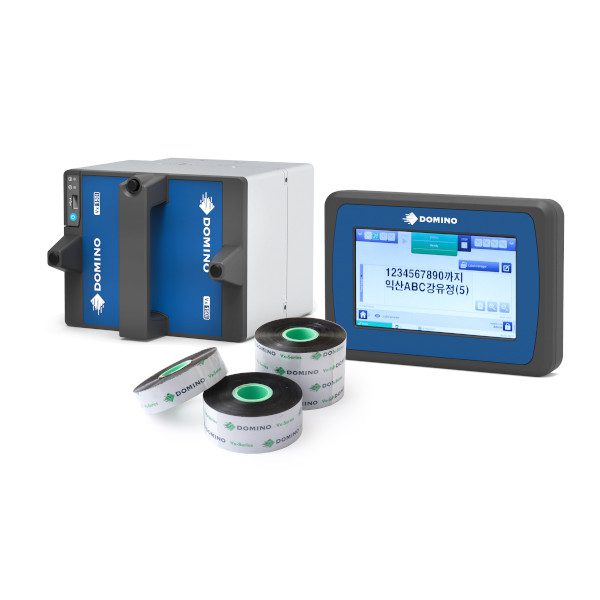

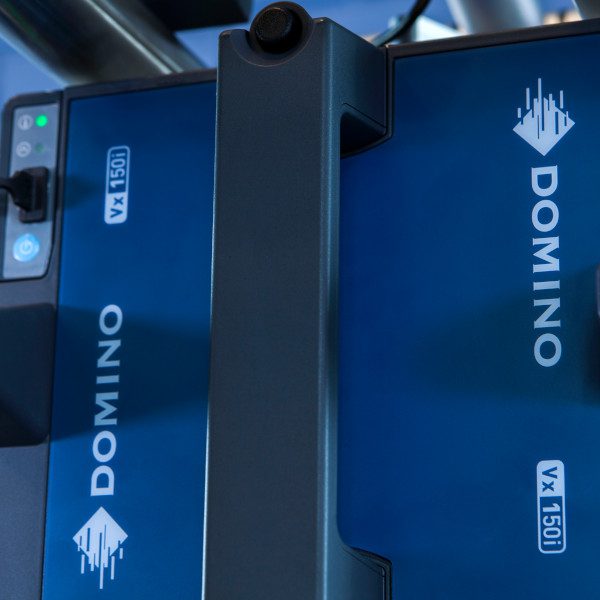

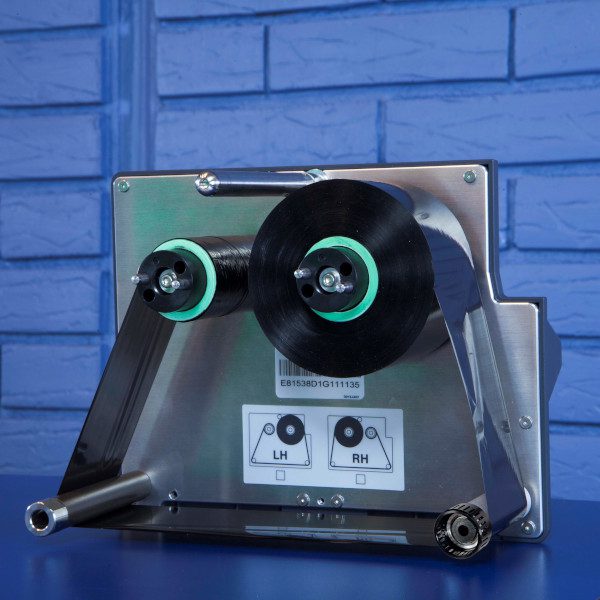

Thanks to its 300 dpi print quality and an output rate of up to 6 prints each second, the Vx150i handles intermittent operations up to 75 mm. Its long ribbon capacity paired with a cassette-based ribbon management enables long production cycles and helps minimize downtime.
In addition to standard flexible packaging coding, the ability to add promotional codes and serialization improves tracking capabilities and protection against counterfeiting.
With QuickDesign software working alongside the Domino Vx150i, error risks are reduced and you can manage all printing processes centrally, even across multiple lines with unique specifications. QuickDesign offers support for universal communication standards and can integrate directly with your ERP infrastructure.
Why Choose the Domino Vx150i Thermal Transfer Printer?
The Domino Vx150i works with a wide range of ribbon types, delivering consistent, eco-friendly, and precise coding for all flexible packaging applications, suitable for every manufacturing need.
With its space-saving design, the Vx150i integrates effortlessly onto any packaging line, maximizing efficiency and layout.
The Vx150i is equipped with customizable access controls, so you can assign personalized user permissions, increase security, and prevent unwanted changes.
Technical Information
Domino printers comply with global standards and are distributed in over 100 countries. Certifications: CE, NRTL, CB, and FCC 47CFR Part. 15B.
Technical Specifications
| Intermittent Mode (IM) | Continuous Mode (CM) | |
|---|---|---|
| Printing Mode | ✓ | ✓ |
| Print Resolution | 300 dpi | 300 dpi |
| Printhead Width | 32 or 53 mm | 32 or 53 mm |
| Print Area (32/53 mm printhead) | 32×75 mm / 53×75 mm | 32×100 mm / 53×100 mm |
| Maximum Ribbon Length | 770 m (AR) | 770 m (AR) |
| Printing Speed | Up to 600 mm/sec | From 10 to 750 mm/sec |
| Maximum Print Frequency | 6 prints/sec | Prints/sec |
| Connectors | 3+1 USB, 1RJ45, 1 GPIO, 1 encoder | 3+1 USB, 1RJ45, 1 GPIO, 1 encoder |
| Supported Print Formats | EAN, GS1, UCC, QR Code, Data Matrix, Han Xin, ITF, Code 128, text, graphics, 1D, 2D codes etc. | EAN, GS1, UCC, QR Code, Data Matrix, Han Xin, ITF, Code 128, text, graphics, 1D, 2D codes etc. |

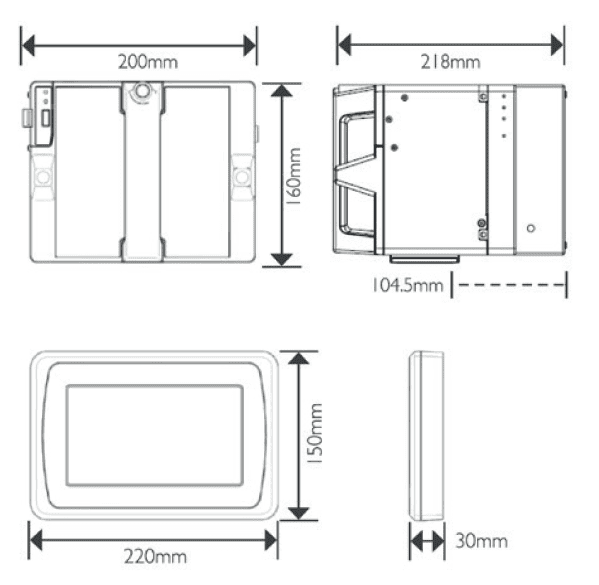

| Dimensions | 200 mm (W) x 160 mm (H) x 218 mm (D) | 200 mm (W) x 160 mm (H) x 218 mm (D) |
| Weight | 5.9 kg | 5.9 kg |
| Cartridge Weight | 0.9 kg (without ribbon) | 0.9 kg (without ribbon) |
| Fully Electric | No compressed air required | No compressed air required |
| Power Supply | 100 to 240 VAC, 50/60 Hz | 100 to 240 VAC, 50/60 Hz |
| Operating Temperature / Humidity | 5 to 40°C / 20% to 80% RH | 5 to 40°C / 20% to 80% RH |
| Ribbon Saving Modes | Economy, Retraction, Column | Economy, Retraction, Column, Mid Print Halt |
| Protocol | Dynamark | Dynamark |
| Function Pack (Optional) | Serialization, Advanced Security, Promotional Coding | Serialization, Advanced Security, Promotional Coding |
| Tablet Connection | Via Wi-Fi dongle | Via Wi-Fi dongle |
| PC Connection | Network cable | Network cable |

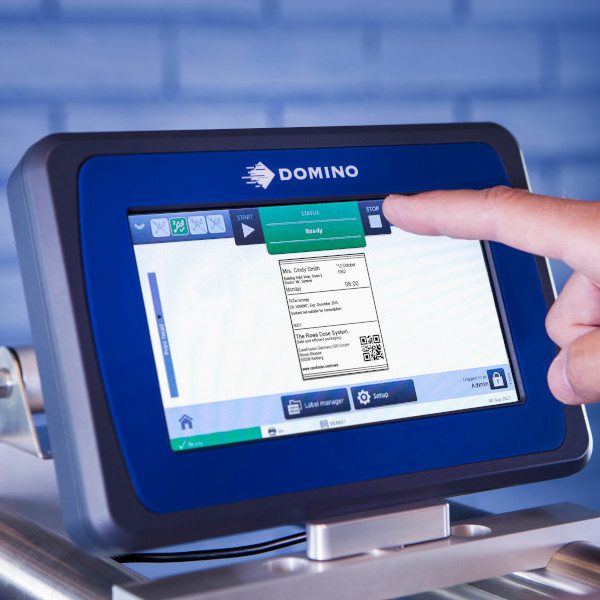

| TouchPad (Optional) | 7” TouchPad, Dimensions: Width 220 mm x Height 150 mm x Depth 30 mm, Multi-language support | 7” TouchPad, Dimensions: Width 220 mm x Height 150 mm x Depth 30 mm, Multi-language support |
| Support Frame (Optional) | Full range of support stands for all needs | Full range of support stands for all needs |
