Domino V320i Thermal Transfer Printer
The Ideal Thermal Transfer Printer for Labels and Flexible Packaging
The Domino V320i thermal transfer printer stands out as the most advanced and economical option for coding on flexible packaging and label materials.
Simple to set up and fully compatible with your production systems, the V320i is equipped with dual-mode operation—intermittent and continuous—in a single device. It offers precise 300 dpi printing for text, logos, variable barcodes, and 2D symbols at exceptional quality.
The unique i-Tech platform delivers ultra-fast print speeds, making the V320i the perfect solution for even the fastest horizontal and vertical wrappers, labellers, and converting lines. Its intelligent system, paired with the broadest ribbon available, ensures the V320i is the top value thermal transfer printer for your operations.
Switching between intermittent and continuous modes is seamless, and the unit can be converted for left- or right-hand installation quickly. There’s no need for a special controller: manage the printer directly through your line’s PC interface.
Why Select the Domino V320i Thermal Transfer Printer?
Superior Print Quality Even at Maximum Output: Thanks to its dancing arm ribbon tension system, the Domino V320i maintains clear, crisp prints, even during the most demanding, high-speed production runs.
Effortless and User-Friendly Controls: Say goodbye to complicated menu navigation. Load your print file and you’re set to go. The integrated software empowers users to design print data right at the production line.
Lowest Operational Costs for Its Category: The Domino i-Tech ribbon features four customizable settings, including an “Economy Mode” that slashes ribbon usage by up to 60%—all while delivering top print clarity.
Technical Information
Domino printers comply with worldwide standards and are available in more than 100 countries. Certifications include CE, NRTL, CB, and FCC 47CFR Part. 15B.
Printer Specifications
| V320i (53 mm) | V320i (128 mm) | |
|---|---|---|
| Printing Mode | Intermittent (IM) and Continuous (CM) in one device | Intermittent (IM) and Continuous (CM) in one device |
| Left/Right Orientation | Both directions possible (conversion in 30 min.) | Both directions possible (conversion in 30 min.) |
| Print Resolution | 300 dpi | 300 dpi |
| Max. Print Area (IM) | 53×115 mm | 128×115 mm |
| Max. Print Area (CM) | 53×2700 mm | 128×1000 mm |
| Max. Printing Speed (IM) | 720 mm/sec | 720 mm/sec |
| Speed Range (CM) | 10-1400 mm/sec | 10-1400 mm/sec |
| Max. Print Repetition Speed | 6 prints/sec (with 10 mm image) | 6 prints/sec (with 10 mm image) |
| Ribbon Technology | i-Tech, dancing arms for tension stability | i-Tech, dancing arms for tension stability |
| Max. Ribbon Length | 1400 m (up to 3500 m in Economy mode) | 1400 m (up to 3500 m in Economy mode) |
| Standard Ribbon Width | 30 mm, 55 mm | 130 mm |
Ribbon Saving Modes
| Economy Mode | Variable at 1%, extends ribbon life by up to 60% | Variable at 1%, extends ribbon life by up to 60% |
| Retraction Mode | Less than 1 mm gap between prints | Less than 1 mm gap between prints |
| Column Mode | Yes | Yes |
| Stop Mid Print | Yes | Yes |
Printing Features
| Data Encoding Format | Yes | Yes |
| Offset | Yes | Yes |
| Shift Codes | Yes | Yes |
| Sequential Numbering | Yes | Yes |
| Fonts | Yes | Yes |
| Barcodes | Yes | Yes |
| Logos | Yes | Yes |
| Graphical Interface | QuickStep, color screen with easy navigation and large icons. WYSIWYG preview. Multiple languages supported. | QuickStep, color screen with easy navigation and large icons. WYSIWYG preview. Multiple languages supported. |
| Connectivity | Ethernet / 2x USB / Mini USB (service) | Ethernet / 2x USB / Mini USB (service) |
Operating Characteristics
| Temperature | Works from 5°-40° C. Humidity: 20%-80%, non-condensing |
* Actual capacities depend on your application, substrate, and print length.
Unmatched Thermal Transfer Coding
The Domino V320i thermal transfer printer covers large print areas with sharp text and images on flexible packaging or labels. Its i-Tech platform enables rapid print speeds, perfect for horizontal/vertical wrappers, label applicators, and converters. With its intelligent controls and the industry’s widest ribbon, the V320i is the ultimate cost-efficient thermal transfer solution. Both intermittent and continuous print modes are housed in one machine, convertible from right to left quickly. No separate controller required: operate from your line’s PC.
Fastest Printing in Its Class
The exclusive i-Tech technology, using dancing arms, keeps the ribbon perfectly tensioned during even the fastest accelerations, maintaining excellent print quality at maximum speeds. The V320i easily processes complex data, delivering speeds of 10 to 1400 mm/sec and up to six prints per second.
Streamlined Setup for Every Line
Adaptable: One device supports both intermittent and continuous modes—convertible from right to left for total flexibility. A full selection of ribbons meets all regulatory and eco standards. No external controller needed: simply plug into any PC or laptop, or use your packaging interface.
Powerful Performance: Prints clearly at 300 dpi—supporting text, logos, dynamic barcodes, and 2D codes. Automatic database connectivity for variable data printing. Choose from 53 mm or 128 mm printheads for your needs.
Engineered to Last: The V320i remains reliable in harsh, dusty, or cold environments with its removable cover protecting the printhead. The built-in heater maintains stable print results and prolongs printhead life, even in low temperatures.
Lowest Cost of Ownership Available
With Domino i-Tech ribbons and four optimization modes, including “Economy Mode”, you use up to 60% less ribbon—saving money without any loss of quality.
Maximum Efficiency and Dependability: The V320i can use up to 1400 m ribbons, reducing changeovers and downtime. With Economy Mode, the usable length can more than double—halving ribbon swaps. Recalibration is quick after each change, so your line returns to production almost immediately. Ribbon breaks are virtually eliminated, and the maintenance-free dancing arms ensure consistent tension—requiring minimal operator attention.
Effortless Operation
QuickStep is an intuitive, user-focused interface that ensures fast, easy print management. Skip the complicated menus—just upload your print file and begin. The built-in software allows on-line label design, or use EasyDesign (or any preferred design tool) to create layouts on a PC and transfer them with USB or Ethernet.

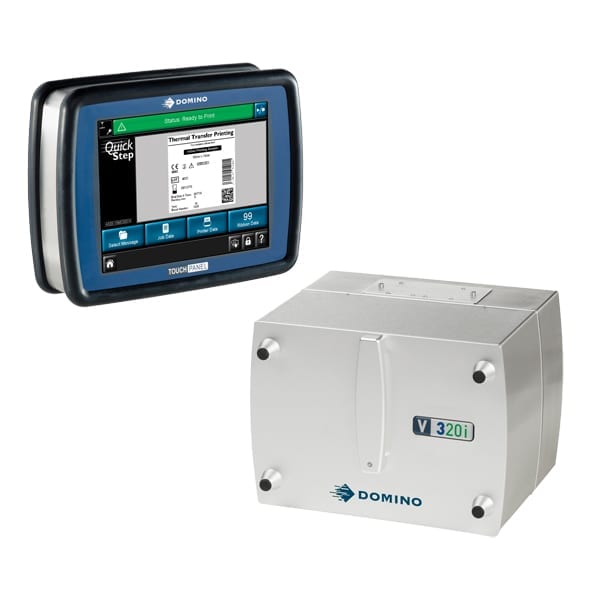

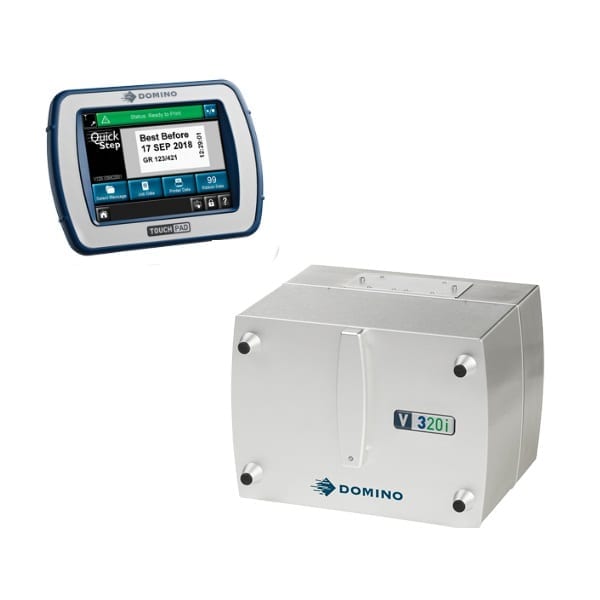

Variants

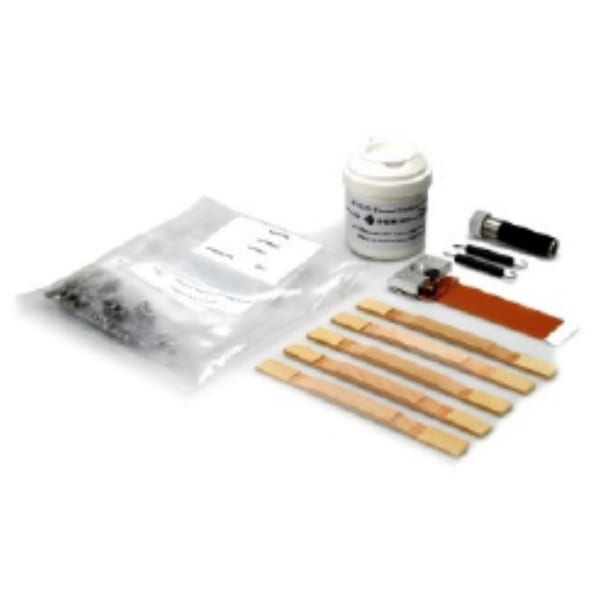

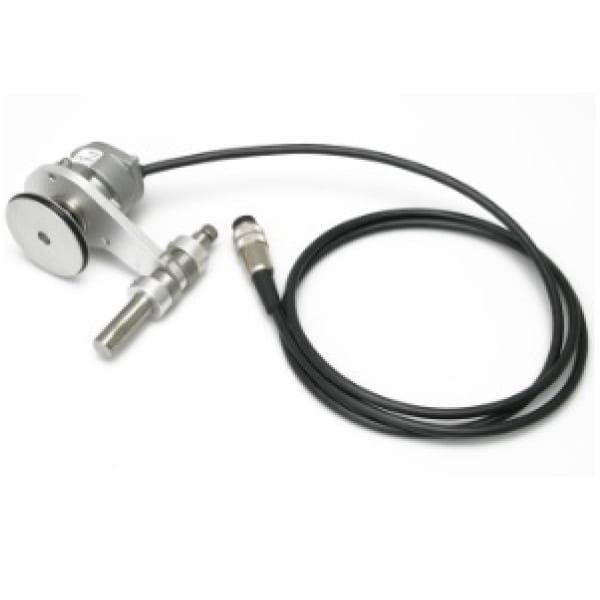

Accessories
Maximize the Domino V-Series TTO printer performance by choosing the best accessories to fit your production environment.
