Domino R550 Vision System
The Domino R550 vision system enables simplified automated inspection of coding and marking
The Domino R550 vision system brings streamlined automatic inspection to coding and marking operations.
It checks the existence, placement, and integrity of codes on your product packaging. Seamless to install and use, it is ideal for fast-paced production environments (handling up to 60,000 items per hour) and fully automated lines in the Food, Beverage, and Cosmetics industries.
The Domino R550 offers a complete solution designed to limit production waste and lower the possibility of costly product recalls.
By adopting the Domino R550, you can:
- Check code presence and correct location
- Carry out character counting
- Perform MRC checks (Verification of Code Readability)
- Validate OCR/OCV code accuracy
Why Choose the Domino R550 Vision System?
Ultra-Fast Integration: Developed for immediate installation on high-throughput production lines (up to 60,000 units per hour).
Next-Generation Hardware: Engineered for smooth integration and ready to support new software releases from developers.
Exceptional Accuracy & Compatibility: Delivers outstanding precision when paired with any Domino printer and operates perfectly with third-party systems.
Technical Information & Variants
| R550 Series | |
|---|---|
| Code Inspection Tools | • Code Presence Verification • Code Position Verification • Character Count • MRC Control (Code Readability Verification) |
| Speed | Application-dependent |
| Input | 1 x Camera trigger, 2 x Programmable |
| Output | 4 x Programmable Outputs |
| Ports | Ethernet, Ethernet GigE, VGA, USB x 2 |
| Electrical Requirements | 110-240V AC, 50-60 Hz – Output: 24V DC |
| Dimensions | 120 mm x 124 mm x 47 mm |
| User Interface | VGA + USB |
| Optional Features | • Integrated Printer & Vision System Interface via a single Control Panel • High-Speed Reject Tracking System: LInK |
| Camera GE-1920IP | |
|---|---|
| Resolution | 1920 x 1080 |
| Max Frame Rate | 52 FPS |
| Field of View | 106 mm x 66 mm @ 150 mm |
| Working Distance | 150 mm |
| Illumination | Not integrated / Requires external light source |
| Minimum 1D Barcode Size | Nominal 0.16 mm (minimum bar width) |
| Minimum 2D Barcode Size | 0.30 mm/cell (minimum module size) |
| Minimum OCR Character Height | 1.38 mm |
| Dimensions | 29 mm x 29 mm x 45 mm (excluding lenses) |
| Protection Rating | IP67 |
| R550 Series | |
|---|---|
| Code Inspection Tools | • Code Presence Verification • Code Position Verification • Character Count • MRC Control (Code Readability Verification) |
| Speed | Application-dependent |
| Input | 1 x Camera trigger, 2 x Programmable |
| Output | 4 x Programmable Outputs |
| Ports | Ethernet, Ethernet GigE, VGA, USB x 2 |
| Electrical Requirements | 110-240V AC, 50-60 Hz – Output: 24V DC |
| Dimensions | 120 mm x 124 mm x 47 mm |
| User Interface | VGA + USB |
| Optional Features | • Integrated Printer & Vision System Interface via a single Control Panel • High-Speed Reject Tracking System: LInK |

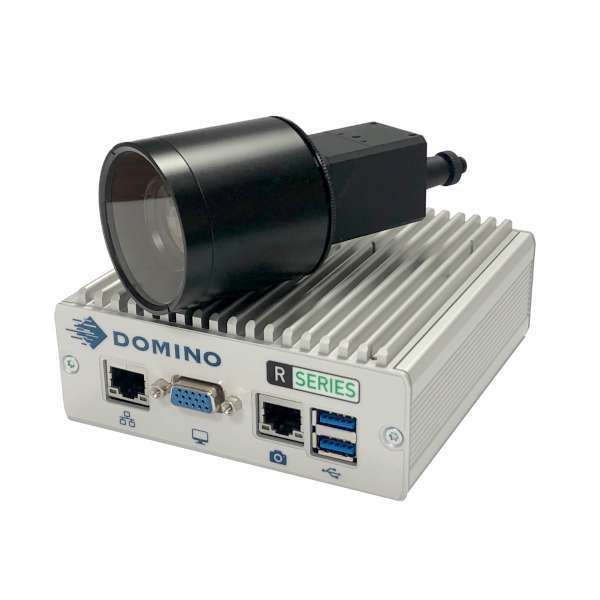

| Camera GE-2448IP | |
|---|---|
| Resolution | 2448 x 2048 |
| Max Frame Rate | 24 FPS |
| Field of View | 106 mm x 66 mm @ 150 mm |
| Working Distance | 150 mm |
| Illumination | Not integrated / Requires external light source |
| Minimum 1D Barcode Size | Nominal 0.16 mm (minimum bar width) |
| Minimum 2D Barcode Size | 0.30 mm/cell (minimum module size) |
| Minimum OCR Character Height | 1.38 mm |
| Dimensions | 29 mm x 29 mm x 45 mm (excluding lenses) |
| Protection Rating | IP67 |
| R550 Series | |
|---|---|
| Code Inspection Tools | • Code Presence Verification • Code Position Verification • Character Count • MRC Control (Code Readability Verification) |
| Speed | Application-dependent |
| Input | 1 x Camera trigger, 2 x Programmable |
| Output | 4 x Programmable Outputs |
| Ports | Ethernet, Ethernet GigE, VGA, USB x 2 |
| Electrical Requirements | 110-240V AC, 50-60 Hz – Output: 24V DC |
| Dimensions | 120 mm x 124 mm x 47 mm |
| User Interface | VGA + USB |
| Optional Features | • Integrated Printer & Vision System Interface via a single Control Panel • High-Speed Reject Tracking System: LInK |

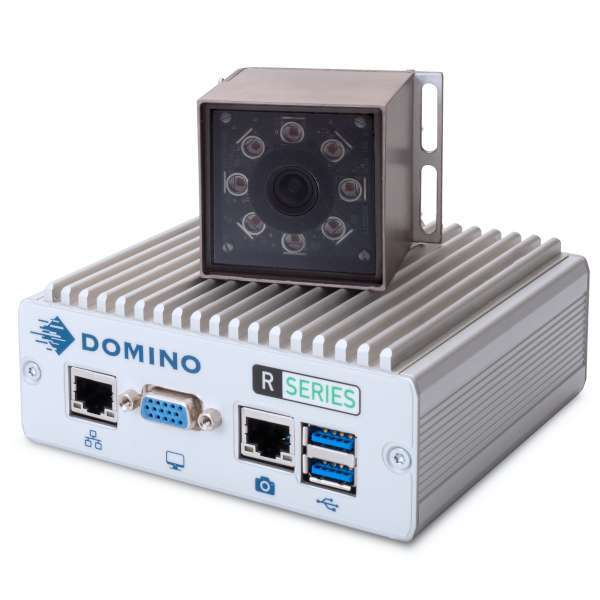

| GR2X-PS-630P | |
|---|---|
| Resolution | 1280 x 1024 |
| Max Frame Rate | 50 FPS |
| Field of View | 70 mm x 55 mm |
| Working Distance | 50 mm |
| Illumination | Integrated, selectable options: • Red LED 630 nm (polarized) • White LED (polarized) |
| Minimum 1D Barcode Size | 0.16 mm (minimum bar width) |
| Minimum 2D Barcode Size | 0.30 mm/cell (minimum module size) |
| Minimum OCR Character Height | 1.38 mm |
| Dimensions | 50 mm x 50 mm x 47 mm |
| Protection Rating | IP65 (Certification Under Validation) |
| R550 Series | |
|---|---|
| Code Inspection Tools | • Code Presence Verification • Code Position Verification • Character Count • MRC Control (Code Readability Verification) |
| Speed | Application-dependent |
| Input | 1 x Camera trigger, 2 x Programmable |
| Output | 4 x Programmable Outputs |
| Ports | Ethernet, Ethernet GigE, VGA, USB x 2 |
| Electrical Requirements | 110-240V AC, 50-60 Hz – Output: 24V DC |
| Dimensions | 120 mm x 124 mm x 47 mm |
| User Interface | VGA + USB |
| Optional Features | • Integrated Printer & Vision System Interface via a single Control Panel • High-Speed Reject Tracking System: LInK |
| GR6-PS-630P | |
|---|---|
| Resolution | 1280 x 1024 |
| Max Frame Rate | 50 FPS |
| Field of View | 112 mm x 88 mm |
| Working Distance | 76 mm |
| Illumination | Integrated: 630 nm Polarized LED |
| Minimum 1D Barcode Size | 0.3 mm (minimum bar width) |
| Minimum 2D Barcode Size | 0.46 mm/cell (minimum module size) |
| Minimum OCR Character Height | 2.27 mm |
| Dimensions | 121 mm x 76 mm x 52 mm |
| Protection Rating | IP65 (Certification Under Validation) |
