Domino R350 Vision System
An All-in-One Vision Solution from a Single Partner
The Domino R350 vision system elevates product quality control by guaranteeing consistent code legibility.
With the Domino R350, it’s possible to decrease both waste and operational expenses by instantly identifying any coding faults or mistakes as they occur. This proactive detection enables companies to sidestep the risk of regulatory fines and issues with retail compliance.
Not only does the Domino R350 vision system help you avoid the expense of product recalls and the risk of brand image harm, but it also removes the need for manual code inspection, which is often time-consuming and inconsistent.
Why Select the Domino R350 Vision System?
Designed to comply with industry protocols and recommendations, making sure your processes always adhere to all current standards.
Developed for maximum flexibility, new functionalities can be unlocked through software updates, supporting future upgrades and expansions.
The Domino R350 offers straightforward setup, operation, and integration on existing manufacturing lines, making your production flow more efficient.
Technical Info & Variants
| Serie R350 | |
|---|---|
| Code Inspection Tools |
|
| Speed | Application-dependent |
| Input | 1 x Camera trigger, 2 x Programmable |
| Output | 4 x Programmable Outputs |
| Ports | Ethernet, Ethernet GigE, VGA, USB x 2 |
| Electrical Requirements | 110-240 AC. 50-60 Hz. – Output: 24V DC |
| Dimensions | 120 mm x 124 mm x 47 mm |
| User Interface | VGA + USB |
| Optional Features |
|

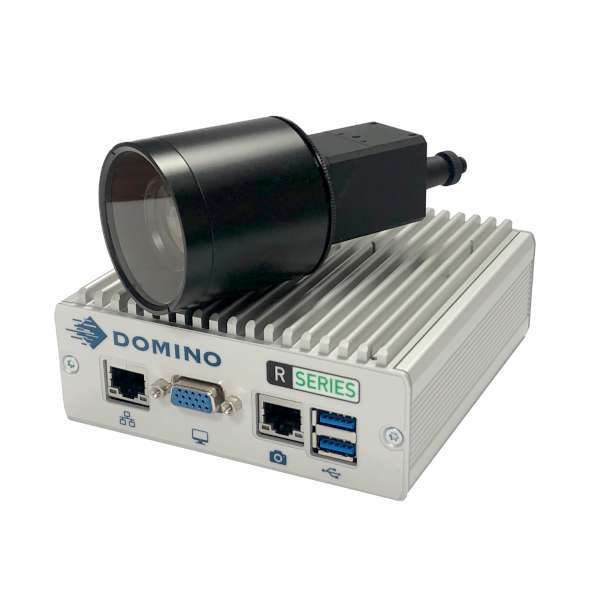

| Camera GE-1920IP | |
|---|---|
| Resolution | 1920 x 1080 |
| Max Frame Rate | 52 FPS |
| Field of View | 106 mm x 66 mm @ 150 mm |
| Working Distance | 150 mm |
| Illumination | Not integrated / Requires external light source |
| Minimum 1D Barcode Size | 0.16 mm (nominal bar width) |
| Minimum 2D Barcode Size | 0.30 mm/cell (minimum module size) |
| Minimum OCR Character Height | 1.38 mm |
| Camera Dimensions | 29 mm x 29 mm x 45 mm (excluding lenses) |
| Protection Rating | IP67 |
| Serie R350 | |
|---|---|
| Code Inspection Tools |
|
| Speed | Application-dependent |
| Input | 1 x Camera trigger, 2 x Programmable |
| Output | 4 x Programmable Outputs |
| Ports | Ethernet, Ethernet GigE, VGA, USB x 2 |
| Electrical Requirements | 110-240 AC. 50-60 Hz. – Output: 24V DC |
| Dimensions | 120 mm x 124 mm x 47 mm |
| User Interface | VGA + USB |
| Optional Features |
|
| Camera GE-2448IP | |
|---|---|
| Resolution | 2448 x 2048 |
| Max Frame Rate | 24 FPS |
| Field of View | 106 mm x 66 mm @ 150 mm |
| Working Distance | 150 mm |
| Illumination | Not integrated / Requires external light source |
| Minimum 1D Barcode Size | 0.16 mm (nominal bar width) |
| Minimum 2D Barcode Size | 0.30 mm/cell (minimum module size) |
| Minimum OCR Character Height | 1.38 mm |
| Camera Dimensions | 29 mm x 29 mm x 45 mm (excluding lenses) |
| Protection Rating | IP67 |
| Serie R350 | |
|---|---|
| Code Inspection Tools |
|
| Speed | Application-dependent |
| Input | 1 x Camera trigger, 2 x Programmable |
| Output | 4 x Programmable Outputs |
| Ports | Ethernet, Ethernet GigE, VGA, USB x 2 |
| Electrical Requirements | 110-240 AC. 50-60 Hz. – Output: 24V DC |
| Dimensions | 120 mm x 124 mm x 47 mm |
| User Interface | VGA + USB |
| Optional Features |
|

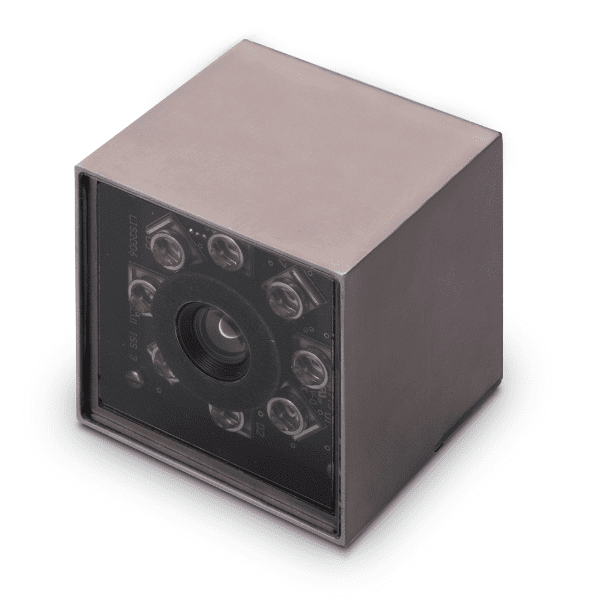

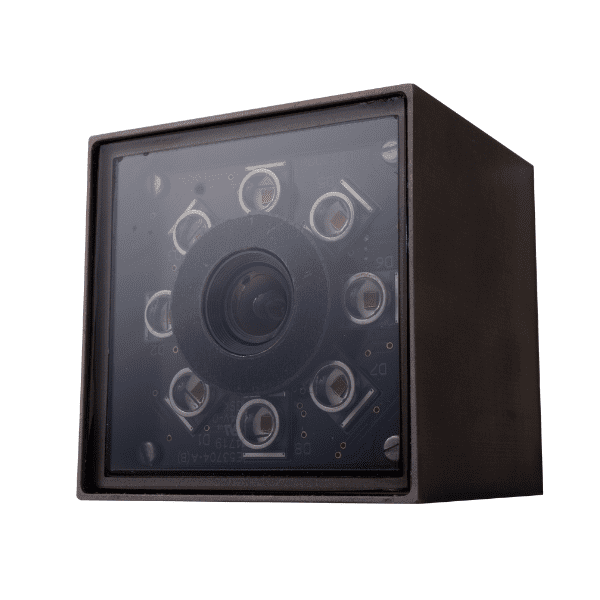

| GR2X-PS-630P | |
|---|---|
| Resolution | 1280 x 1024 |
| Max Frame Rate | 50 FPS |
| Field of View | 70 mm x 55 mm |
| Working Distance | 50 mm |
| Illumination | Integrated, selectable options:
|
| Minimum 1D Barcode Size | 0.16 mm (nominal bar width) |
| Minimum 2D Barcode Size | 0.30 mm/cell (minimum module size) |
| Minimum OCR Character Height | 1.38 mm |
| Dimensions | 50 mm x 50 mm x 47 mm |
| Protection Rating | IP65 (Certification Under Validation) |
| Serie R350 | |
|---|---|
| Code Inspection Tools |
|
| Speed | Application-dependent |
| Input | 1 x Camera trigger, 2 x Programmable |
| Output | 4 x Programmable Outputs |
| Ports | Ethernet, Ethernet GigE, VGA, USB x 2 |
| Electrical Requirements | 110-240 AC. 50-60 Hz. – Output: 24V DC |
| Dimensions | 120 mm x 124 mm x 47 mm |
| User Interface | VGA + USB |
| Optional Features |
|

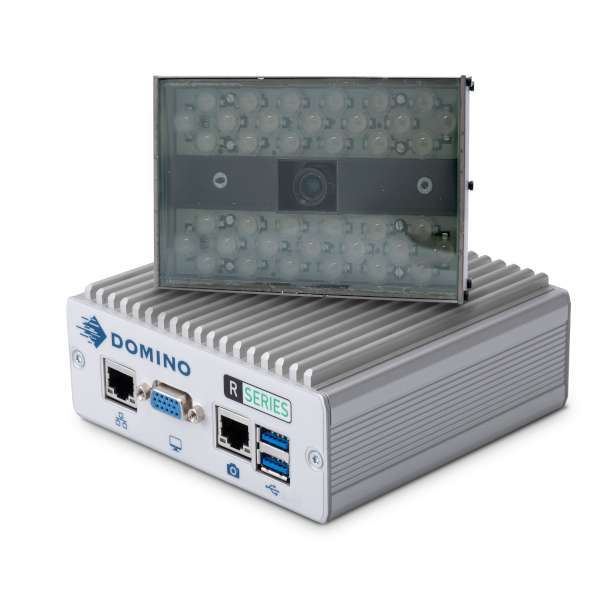

| GR6-PS-630P | |
|---|---|
| Resolution | 1280 x 1024 |
| Max Frame Rate | 50 FPS |
| Field of View | 112 mm x 88 mm |
| Working Distance | 76 mm |
| Illumination | Integrated: 630 nm Polarized LED |
| Minimum 1D Barcode Size | 0.3 mm (minimum bar width) |
| Minimum 2D Barcode Size | 0.46 mm/cell (minimum module size) |
| Minimum OCR Character Height | 2.27 mm |
| Dimensions | 121 mm x 76 mm x 52 mm |
| Protection Rating | IP65 (Certification Under Validation) |
