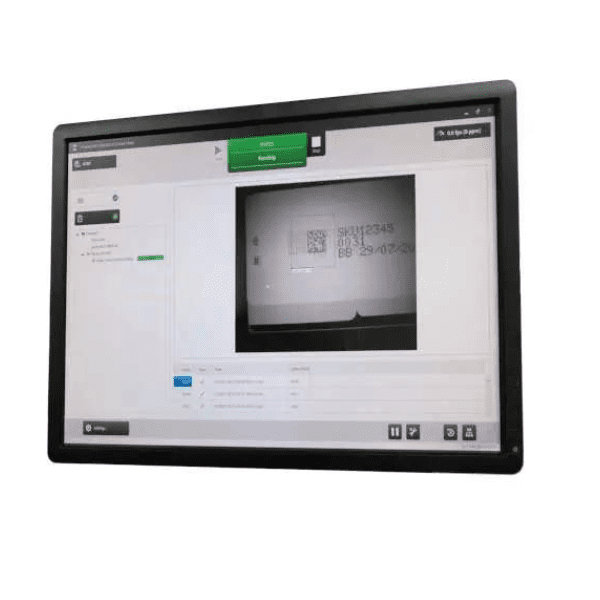

Domino R150 Vision System
The Ultimate Solution for Code Verification and Quality Assurance
The Domino R150 vision system delivers precise and dependable inspection by checking presence, positioning, readability, and accuracy of printed codes on each product.
Considerably more trustworthy than manual or sample-based inspections, the Domino R150 reduces unnecessary product losses and batch returns resulting from marking mistakes.
By connecting the Domino R150 vision system with Domino’s coding and marking equipment, you gain a complete solution from a single provider for your industrial printing needs, saving both time and operational costs on your production floor.
Why Opt for the Domino R150 Vision System?
The Domino R150 vision system was created to work seamlessly with Domino printers, providing maximum compatibility and high-level performance even with third-party coders.
Simple and fast to set up, taking up minimal space on your line, and equipped with advanced integration software for streamlined and effective implementation.
With throughput reaching 60,000 units per hour (depending on application), the Domino R150 delivers rapid and trustworthy quality assurance.
Technical Information & Variants
| R150 | |
|---|---|
| Code Inspection Tools |
|
| Speed | Application-dependent |
| Input | 1 x Camera trigger, 2 x Programmable |
| Output | 4 x Programmable Outputs |
| Ports | Ethernet, Ethernet GigE, VGA, USB x 2 |
| Electrical Requirements | 110-240 AC. 50-60 Hz. – Output: 24V DC |
| Dimensions | 120 mm x 124 mm x 47 mm |
| User Interface | VGA + USB |
| Optional Features |
|
| Camera GE-1920IP | |
|---|---|
| Resolution | 1920 x 1080 |
| Max Frame Rate | 52 FPS |
| Field of View | 106 mm x 66 mm @ 150 mm |
| Working Distance | 150 mm |
| Illumination | Not integrated / Requires external light source |
| Minimum 1D Barcode Size | 0.16 mm (nominal bar width) |
| Minimum 2D Barcode Size | 0.30 mm/cell (minimum module size) |
| Minimum OCR Character Height | 1.38 mm |
| Camera Dimensions | 29 mm x 29 mm x 45 mm (excluding lenses) |
| Protection Rating | IP67 |
| R150 | |
|---|---|
| Code Inspection Tools |
|
| Speed | Application-dependent |
| Input | 1 x Camera trigger, 2 x Programmable |
| Output | 4 x Programmable Outputs |
| Ports | Ethernet, Ethernet GigE, VGA, USB x 2 |
| Electrical Requirements | 110-240 AC. 50-60 Hz. – Output: 24V DC |
| Dimensions | 120 mm x 124 mm x 47 mm |
| User Interface | VGA + USB |
| Optional Features |
|

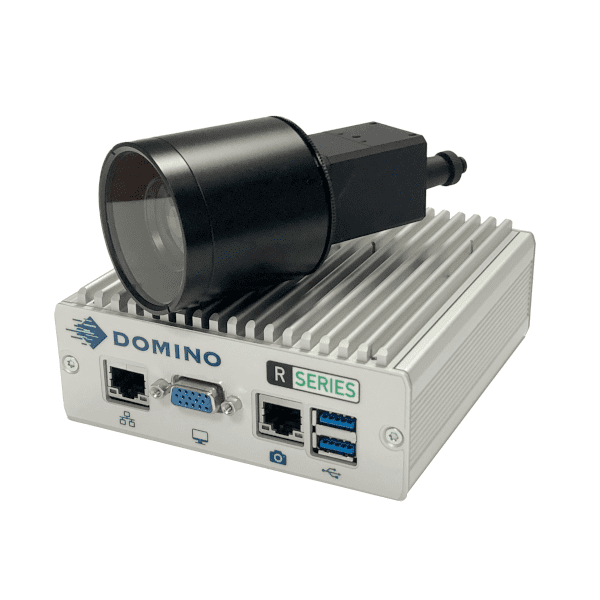

| Camera GE-2448IP | |
|---|---|
| Resolution | 2448 x 2048 |
| Max Frame Rate24 | 24 FPS |
| Field of View | 106 mm x 66 mm @ 150 mm |
| Working Distance | 150 mm |
| Illumination | Not integrated / Requires external light source |
| Minimum 1D Barcode Size | 0.16 mm (nominal bar width) |
| Minimum 2D Barcode Size | 0.30 mm/cell (minimum module size) |
| Minimum OCR Character Height | 1.38 mm |
| Camera Dimensions | 29 mm x 29 mm x 45 mm (excluding lenses) |
| Protection Rating | IP67 |
| R150 | |
|---|---|
| Code Inspection Tools |
|
| Speed | Application-dependent |
| Input | 1 x Camera trigger, 2 x Programmable |
| Output | 4 x Programmable Outputs |
| Ports | Ethernet, Ethernet GigE, VGA, USB x 2 |
| Electrical Requirements | 110-240 AC. 50-60 Hz. – Output: 24V DC |
| Dimensions | 120 mm x 124 mm x 47 mm |
| User Interface | VGA + USB |
| Optional Features |
|

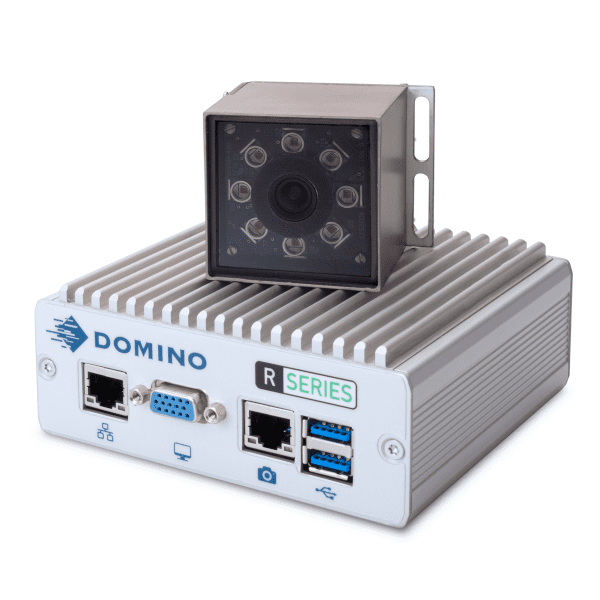

| Camera GR2X-PS-630P | |
|---|---|
| Resolution | 1280 x 1024 |
| Max Frame Rate24 | 50 FPS |
| Field of View | 70 mm x 55 mm |
| Working Distance | 50 mm |
| Illumination |
|
| Minimum 1D Barcode Size | 0.16 mm (nominal bar width) |
| Minimum 2D Barcode Size | 0.30 mm/cell (minimum module size) |
| Minimum OCR Character Height | 1.38 mm |
| Camera Dimensions | 50 mm x 50 mm x 47 mm |
| Protection Rating | IP65 (Certification Under Validation) |
| R150 | |
|---|---|
| Code Inspection Tools |
|
| Speed | Application-dependent |
| Input | 1 x Camera trigger, 2 x Programmable |
| Output | 4 x Programmable Outputs |
| Ports | Ethernet, Ethernet GigE, VGA, USB x 2 |
| Electrical Requirements | 110-240 AC. 50-60 Hz. – Output: 24V DC |
| Dimensions | 120 mm x 124 mm x 47 mm |
| User Interface | VGA + USB |
| Optional Features |
|

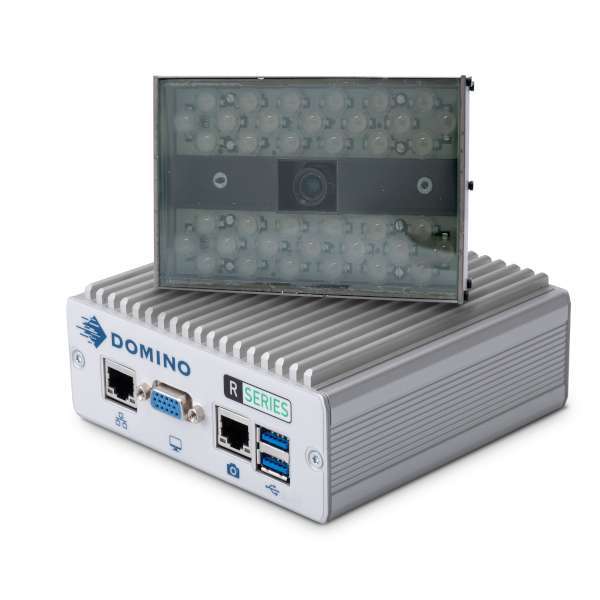

| Camera GR6-PS-630P | |
|---|---|
| Resolution | 1280 x 1024 |
| Max Frame Rate24 | 50 FPS |
| Field of View | 112 mm x 88 mm |
| Working Distance76 | 76 mm |
| Illumination | Integrated: Polarized LED 630 nm |
| Minimum 1D Barcode Size | 0.3 mm (nominal bar width) |
| Minimum 2D Barcode Size | 0.46 mm/cell (nominal bar width) |
| Minimum OCR Character Height | 2.27 mm |
| Camera Dimensions | 121 mm x 76 mm x 52 mm |
| Protection Rating | IP65 (Certification Under Validation) |
