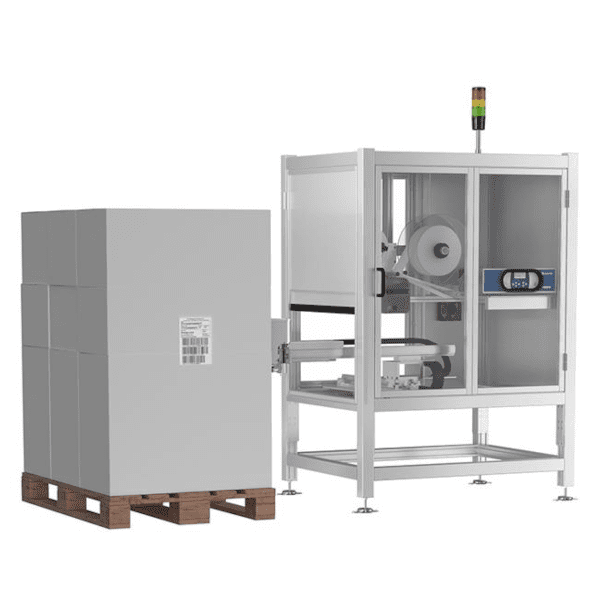

Domino M230i-P150 Pallet Labeller


The Most Robust, Safe, and Efficient Solution for Pallet Labelling

The Domino M230i-P150 pallet labeller provides a versatile, automated answer for the final stage of your production line: multi-side labelling of pallets with multiple labels that deliver clear, precise information.

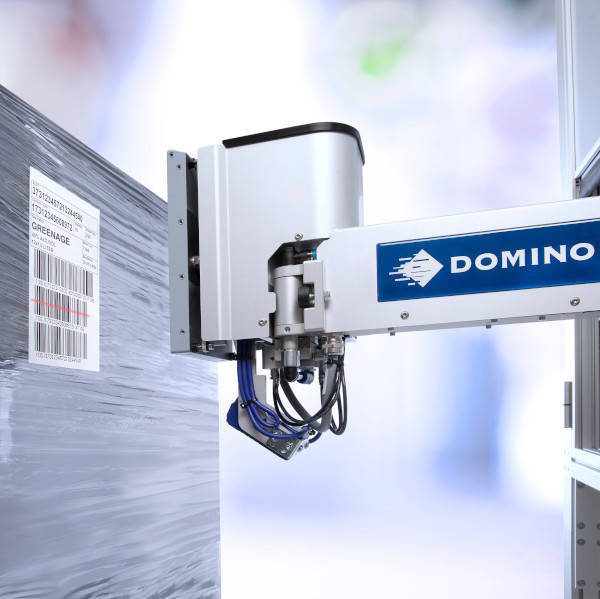

With its advanced engineering, the M230i-P150 enables the application of labels on one, two, or three sides of each pallet, delivering outstanding operator safety and intuitive operation on the line.

Its protective enclosure ensures top-level defense in challenging industrial conditions, which significantly prolongs the operating life of the Domino M230i-P150, making it a durable and high-performance pallet labelling system.

Integrating this pallet labeller with your ERP platforms guarantees comprehensive product traceability throughout the entire supply chain.

All Domino M-Series print & apply systems are supported by worldwide technical service.

 TECHNICAL INFO   |   ACCESSORIES   |   VIDEO

Why Choose the Domino M230i-P150 Pallet Labeller?

icona integrazione 2

The Domino M230i-P150 stands out as a sturdy, high-performance choice, engineered to function in the most demanding environments. The climate-controlled enclosure delivers precise temperature management, regardless of the presence of dust, humidity, or extreme thermal conditions on your production floor.

icona interconnessioni

By connecting the pallet labeller with your ERP infrastructure, it is possible to monitor each product across the supply chain. In addition, safety sensors built into the enclosure prevent operators from making contact with moving machine parts.

icona raggiungimento obbiettivi

Every pallet can be individually set for label amount and location, offering exceptional accuracy and making long-term pallet labelling both secure and productive.

Technical Information

Number of Labels per Product 1-3
Product Movement Static
Contact with Product Yes
Printing Module Tamp Pad
Pad Dimensions (Width x Length) 150×210 mm
Recommended Label Width 60-150 mm
Recommended Label Length 40-210 mm
Label Inspection Optional
Available Stroke Lengths Distance from product: 495 mm / 10-495 mm
Autostop No
Printed and Applied Labels per Minute (Typical) Labels: 150×210 mm / Distance from product: 450 mm / 3×2 labels min
Typical Compressed Air Consumption (per cycle) 9-25 liters
Power Consumption (per cycle at 230V) 225W
Idle Power (230V) 60W

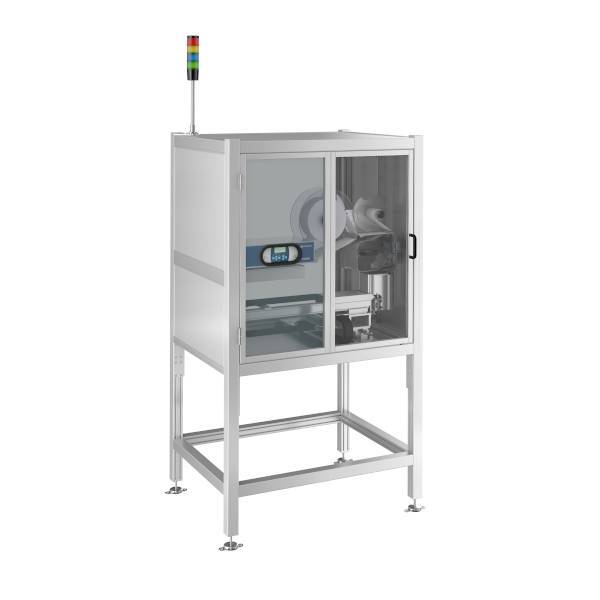

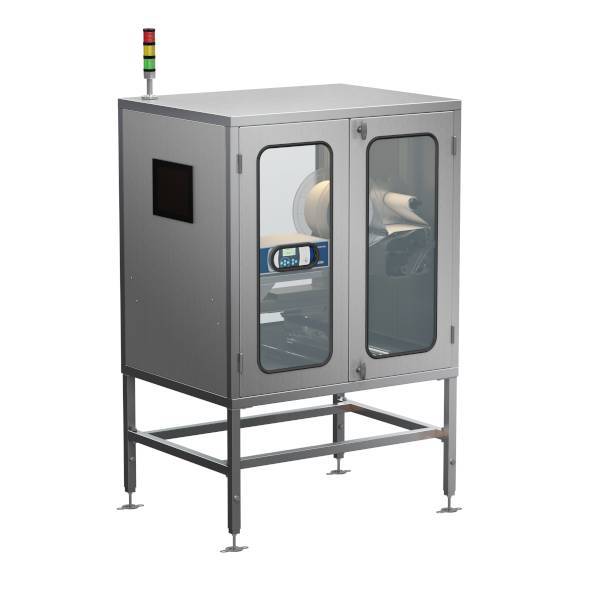

Dimensions (L x H x W) Aluminum 1174x2366x955 mm / Steel: 1195x2087x993 mm

Accessories

The Domino M230i-P150 Pallet Labeller can be configured with optional accessories, available on request:

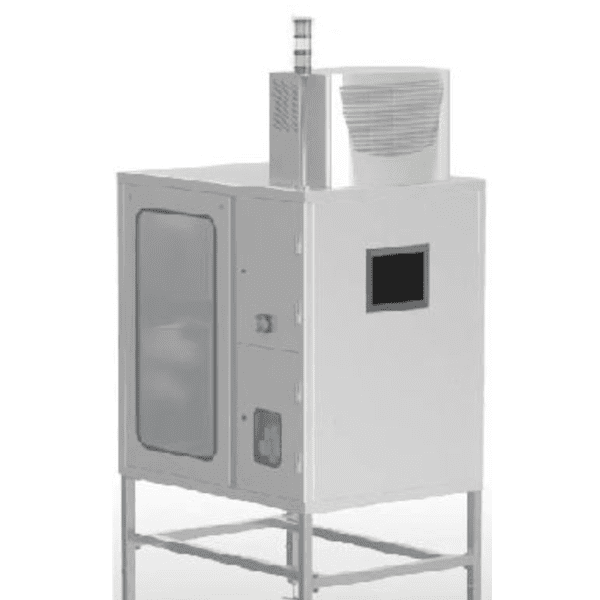

  • TouchPanel

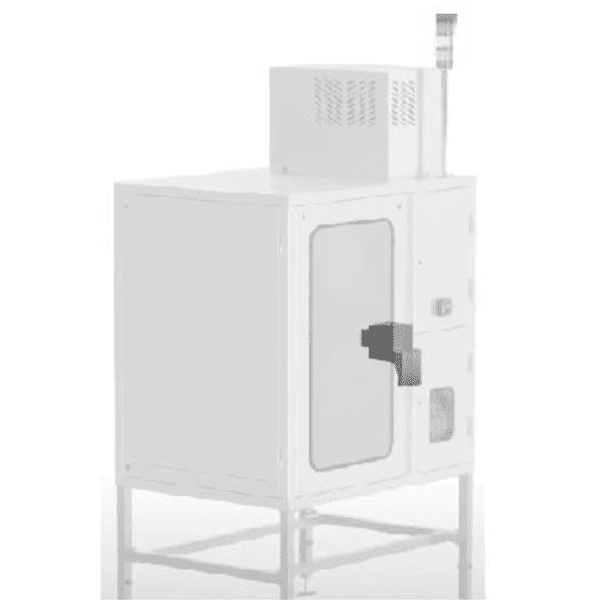

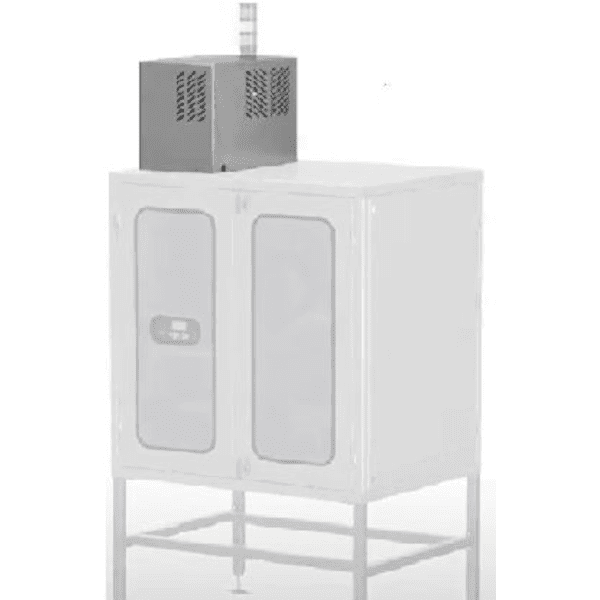

  • Climate Control Kit

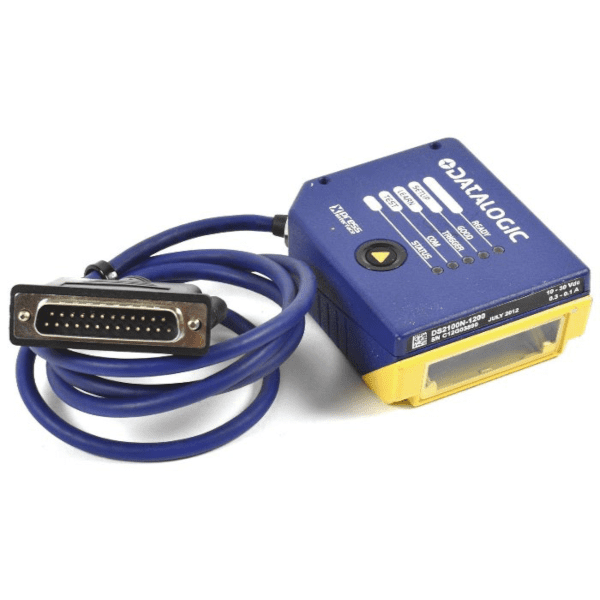

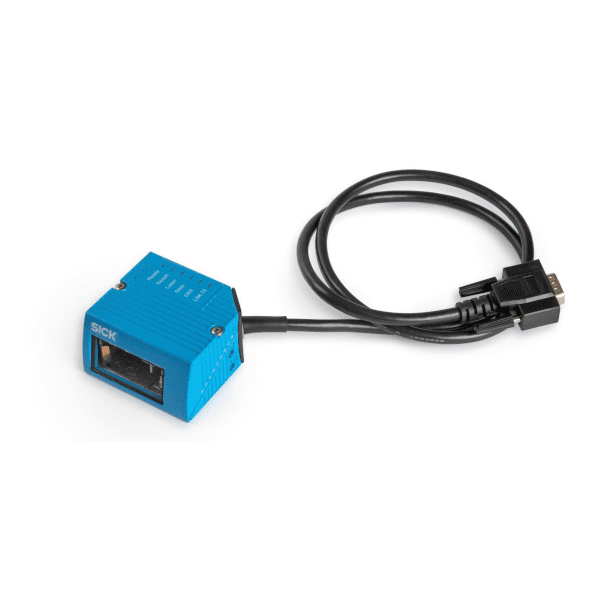

  • Scanner
