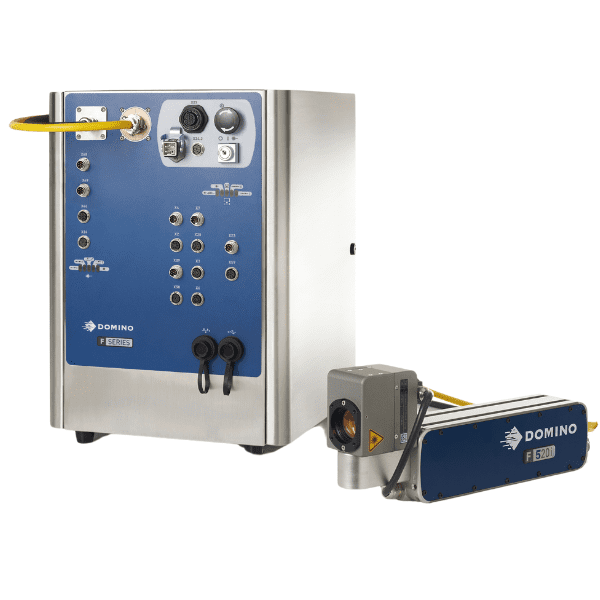

Domino F520i CP Industrial Fiber Laser Printer


Permanent Coding at Maximum Line Speeds

The Domino F520i CP fiber laser printer is an innovative and robust solution for lasting, abrasion-proof coding on foil, metallic materials, and rigid plastics. For operations requiring sharp, high-contrast marks at peak speed, the F520i CP laser stands out as the optimal tool for industries in food, electronics, automotive, and pharmaceuticals.

The Domino F520i CP supports eco-friendly production—operating with zero fluids or consumable parts. Its completely redesigned cooling unit enables energy savings and low power usage.

Utilizing cutting-edge laser technology, this system increases output efficiency and is designed to function without any scheduled maintenance.

The Domino F520i CP fiber laser printer provides remarkable coding accuracy, even for curved surfaces such as cans.

Why Choose the Domino F520i Fiber Laser Printer?

icona soddisfazione

The Domino F520i laser printer maintains consistent, premium code quality, minimizing scrap and making round-the-clock production more efficient.

icona raggiungimento obbiettivi

With brief, high-intensity laser pulses, the F520i achieves even faster code application for precise and reliable coding every time.

icona integrazione

Equipped with IP65 certification, the Domino F520i is engineered for damp, sugar-laden drink production areas and can run nonstop at up to 45°C.

Informazioni Tecniche

Texts 32 fonts, multilingual including Unicode
Graphics & Logos Imported *.bmp (monochrome), *.plt, *.dxf
MRC (Linear & 2D Codes)
Operating Temperature 5-35°C (optional up to 45°C)
Ingress Protection (Printhead) IP65
Ingress Protection (Cabinet) IP55 (optional IP65)
Laser Type Pulsed Fiber Laser
Laser Power 50W
Laser Wavelength 1059 – 1065nm
Peak Power 12kW
Head Conduit Length 2.7m (8.9ft)
Material Stainless Steel & Aluminum
Electrical Specifications 420VA average (70VA idle)
Lunghezza condotto testa 2.7 m (8.9 ft)
Power Consumption 420VA average (70VA idle)
USB port
RS232 port
Ethernet (10/100 Mbit)
Ethernet/IP Optional
Laser Source Lifespan  100.000h (MTBF)

technical features domino f520i
