Domino Dx660i Industrial CO₂ Laser Printer


Domino Dx660i: Ultimate Versatility for High-Speed Marking

The Domino Dx660i laser printer features a powerful 60-watt CO₂ laser, making it the preferred option for applying intricate, oversized codes at rapid production rates—even on challenging surfaces like PET plastic and glass.

Created for reliable variable data printing to ensure product tracking, anti-counterfeit measures, and customer interaction, this advanced Domino Dx660i laser printer also encourages waste reduction through precise and consistent coding, providing an adaptable solution ready for future industry needs.

Blending the most recent innovations with exceptional build quality, the new generation Domino Dx Series CO₂ laser printers are purpose-built for easy deployment in manufacturing lines. They streamline installation, use, and maintenance, delivering a high-performance solution for industrial coding.

Why Select the Domino Dx660i Industrial CO₂ Laser Printer?

icona raggiungimento obbiettivi

Delivers outstanding marking speed for demanding, high-output lines, powered by advanced HS High-Speed scan technology.

icona integrazione

The Domino Dx660i laser printer is built to run reliably in environments up to 45°C.

icona tecnico

Equipped with a web-based interface and easy controls through the smart HMI, simplifying user interaction.


Technical Information

Laser Type
Dx260i Dx360i Dx660i
Laser technology CO₂ CO₂ CO₂
Laser source 20W, wavelengths 9.3, 10.2, 10.6μm 30W, wavelengths 9.3, 10.2, 10.6μm 60W, wavelengths 9.3, 10.2, 10.6μm
Expected lifetime 50,000h MTBF 50,000h MTBF 50,000h MTBF
Coding Format
Coding content Specialized laser fonts for fast marking and standard industrial font sets. Able to print graphics, logos, and widely used machine-readable code types (1D, 2D) including DataMatrix, GS1, QR. Features support for GS1 Digital Link. Enables traceability through serial data, sequential or batch numbers, with clock synchronization and NTP compatibility.
Focal length from 80mm to 600mm
Marking field from min. 57x57mm² to max. 379x582mm²
Advanced Features Targeting beam, Aim & Code

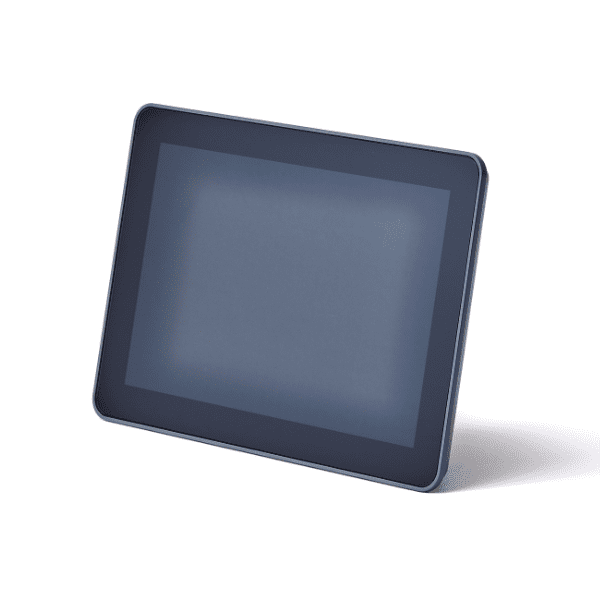

User Interface Web-based user interface, multiple parallel access points possible, optional 10.1’’ touch panel
System Specification
Scan head orientations Extensive scan head positioning including 360° rotating head. Over 50 possible beam orientation options. Tailored setups and system integration available.

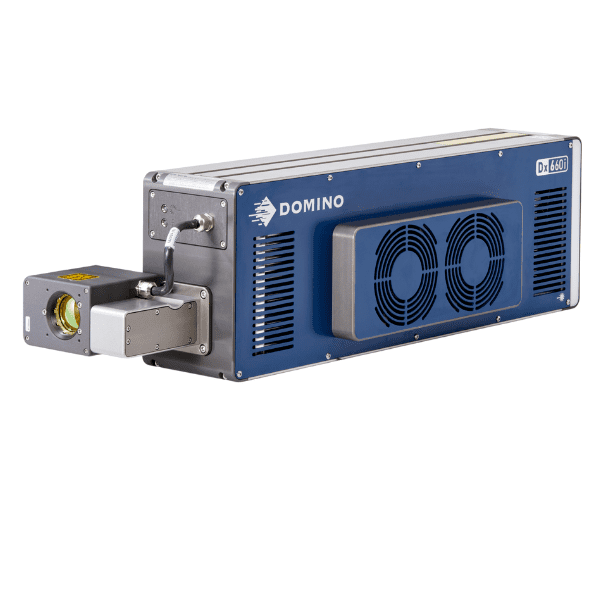

Ingress Protection Laser module: IP54 fan-cooled, IP65 with optional compressed air. Controller: IP55
Operating temperature 5˚C – 45˚C
Operating humidity max. 90% RH, non-condensing
Electrical supply multi-voltage 90-264V, 50/60Hz
Input and Outputs, Interfaces
Inputs/outputs Range of input/output connections including extractor, compressed air kit, encoder, product sensor
(NPN, PNP), beacon, safety interlocks, standard GPIO, extra GPIO as optional.
Interfaces/Protocols Ethernet, USB, Dynamark Protocol, EtherNet/IP™
Options
Accessories Extraction solutions with custom shrouds, airknife for lens cleaning, integration supports: brackets, cables, stands
Certification Marking: CE**, cTÜVus, UKCA / Meets requirements: NRTL, ROHS, FDA listed, EMC, FCC.

** Partly Completed Machinery as per Machinery Directive (2006/42/EC), CE marking according to ROHS (2011/65/EU) and EMC(2014/30/EU)

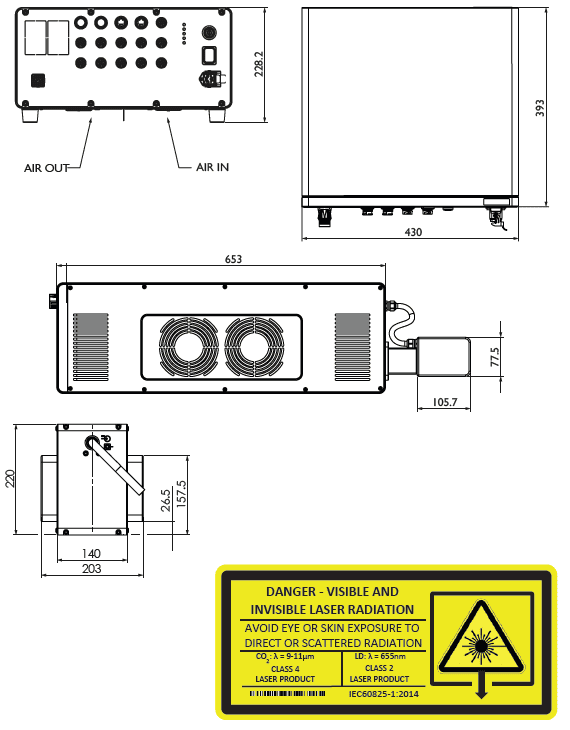

specifiche tecniche marcatore laser dx660i
