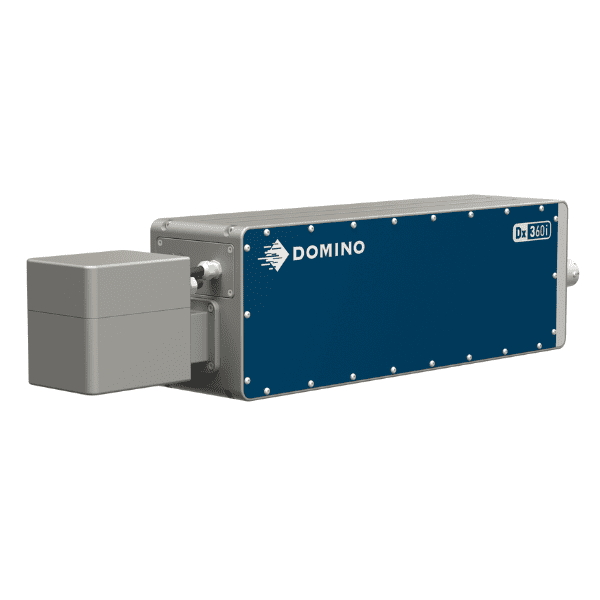

Domino Dx360i CO₂ Laser Printer


Domino Dx360i: High-Speed, Versatile, and Engineered for Endurance

The Domino Dx360i CO₂ Laser Printer delivers a marking solution prepared for future compliance, supporting GS1 regulations and making it possible to print large, advanced readable codes, including GS1 QR codes.

The Domino Dx360i covers a broad spectrum of coding needs in production, ensuring indelible traceability codes for both products and packaging.

This CO₂ laser coding system manages applications ranging from basic date markings to intricate code structures, such as 1D and 2D formats, on a vast range of substrates like PET, PP plastics, glass, paper, and cardboard even at elevated line speeds.

Why Opt for the Domino Dx360i CO₂ Industrial Laser Printer?

icona raggiungimento obbiettivi

With over 50 standard beam orientation possibilities, a scan head with full 360° rotation, and tailored configurations for unique applications.

icona integrazione

The Domino Dx360i laser printer connects seamlessly with ERP, WMS, and MES software. Harsh, dusty, wet, or sticky manufacturing environments are manageable thanks to IP54/IP65-protected print heads and an IP55-rated controller.

icona tecnico

A web-based control panel is accessible from any common browser device, providing a familiar experience across all Domino Series X models. A modern touch screen interface is also available as an option.

Technical Information

Laser Type
Dx260i Dx360i Dx660i
Laser technology CO₂ CO₂ CO₂
Laser source 20W, wavelengths 9.3, 10.2, 10.6μm 30W, wavelengths 9.3, 10.2, 10.6μm 60W, wavelengths 9.3, 10.2, 10.6μm
Expected lifetime 50.000h MTBF 50.000h MTBF 50.000h MTBF
Coding Format
Coding content Laser-optimized fonts for rapid code application and standard industrial alphabets. Logos, graphics, and scannable code standards (1D, 2D), including DataMatrix, GS1, QR. Simple GS1 Digital Link setup. Supports traceability using serialization, sequential and batch numbering. Integrated clock and NTP compatibility.
Focal length from 80mm to 600mm
Marking field from min. 57x57mm2 to max. 379x582mm2
Advanced Features Aiming laser, Aim & Code
User Interface Web-based user interface, can set up several parallel access points, optional 10.1’’ touch panel
System Specification
Scan head orientations Diverse scan head configurations including a model with 360° rotation. Over 50 different beam setups. Custom solutions and integration available.
Ingress Protection Laser: IP54 with fan cooling, IP65 air cooling as option. Controller: IP55
Operating temperature 5˚C – 45˚C
Operating humidity max. 90% RH, non-condensing
Electrical supply multivoltage 90-264V, 50/60Hz
Input and Outputs, Interfaces
Inputs/outputs Multiple digital I/O available: extractor, compressed air kit, encoder, product sensor (NPN, PNP), beacon/interlocks, standard GPIO, and extra optional GPIO.
Interfaces/Protocols Ethernet, USB, Dynamark Protocol, EtherNet/IP™
Options
Accessories Extraction systems including shrouds, air knife for lens cleaning, diverse mounting brackets, integration cables, and stands.
Certification Marking: CE**, cTÜVus, UKCA / Meets: NRTL, ROHS, FDA, EMC, FCC.

** Partly Completed Machinery as per Machinery Directive (2006/42/EC), CE marking according to ROHS (2011/65/EU) and EMC(2014/30/EU)
