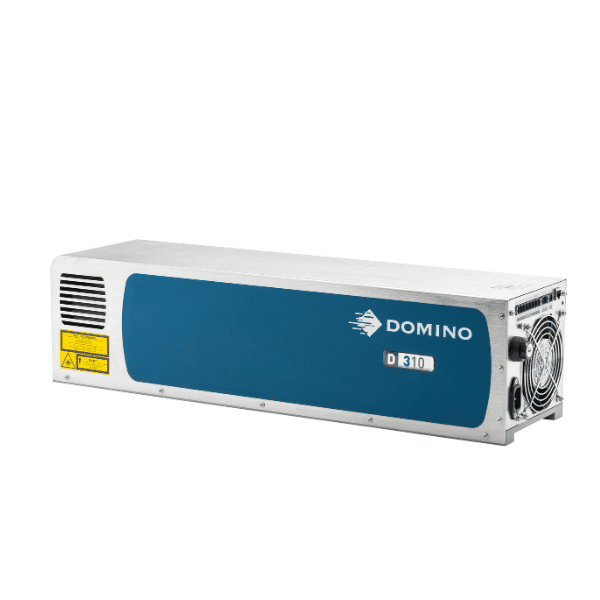

Domino D310 Industrial CO₂ Laser Printer
Domino D310: Ultra-Compact Laser Printer for Sharp Coding on Diverse Surfaces

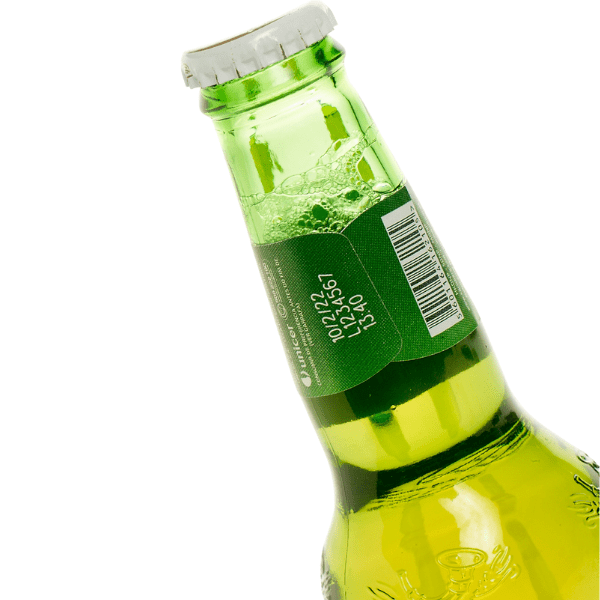

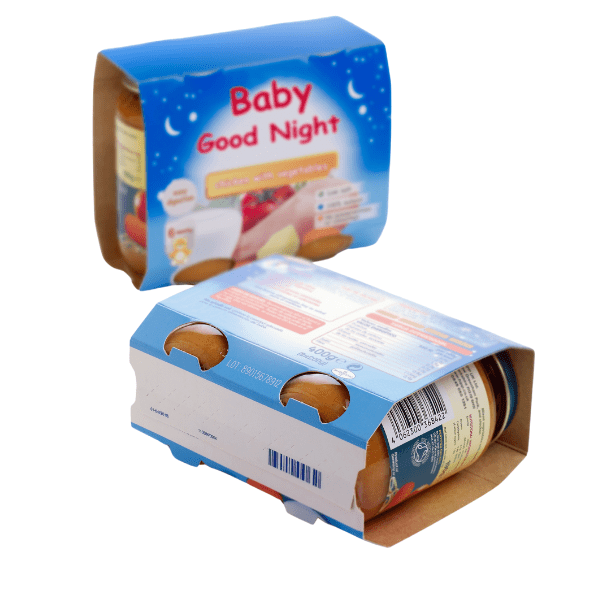

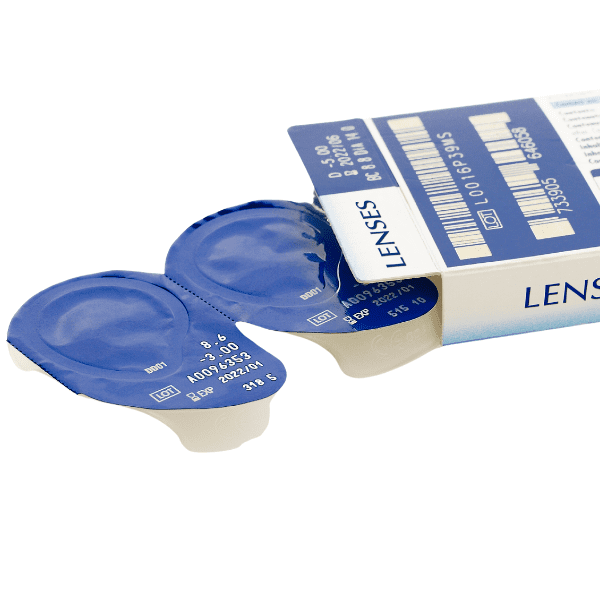

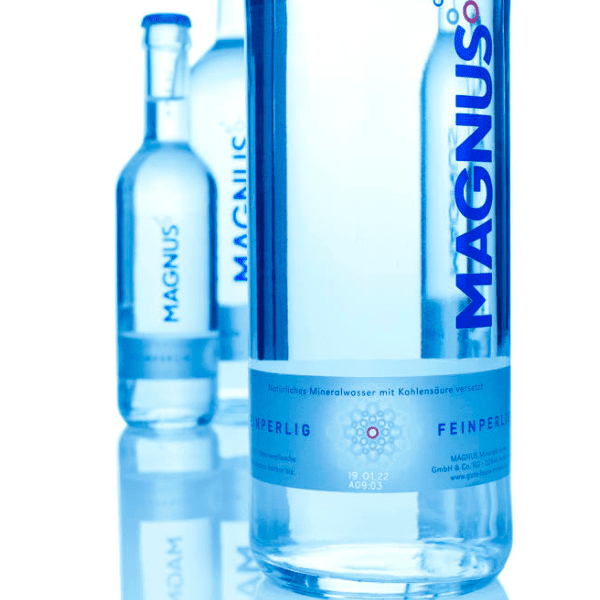

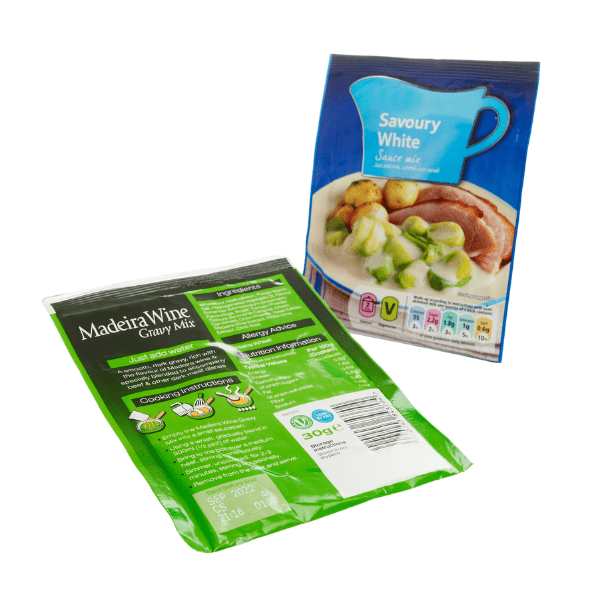

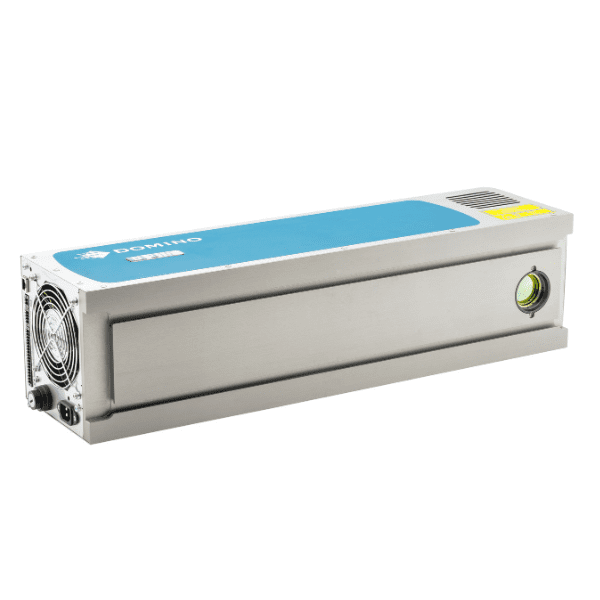

The Domino D310 laser printer stands out as the most compact and lightweight CO₂ vector laser in its class, engineered for fast, high-quality coding on aluminum, cardboard, paper, glass, PET, and various plastics.
The Domino D310 delivers laser marking for graphics, barcodes, and 2D codes—including QR Codes and DataMatrix. It can engrave an unlimited number of lines in any direction, supporting multilingual and Unicode characters.
The Domino D310 fulfills all current and future demands for high-clarity code applications and adheres to traceability standards.
Flexible installation: The Domino D310 scan head rotates from 0° to 90°. With IP55 protection, the Domino D310 laser printer is perfectly equipped for challenging industrial settings (standard on the D310e version).
Why Opt for the Domino D310 Laser Printer?
Quick Setup: Fast to integrate into production lines, with mounting guides running along the full body.
Environmentally Friendly: The Domino D310 laser printer requires no consumables, and its new cooling technology ensures low energy use.

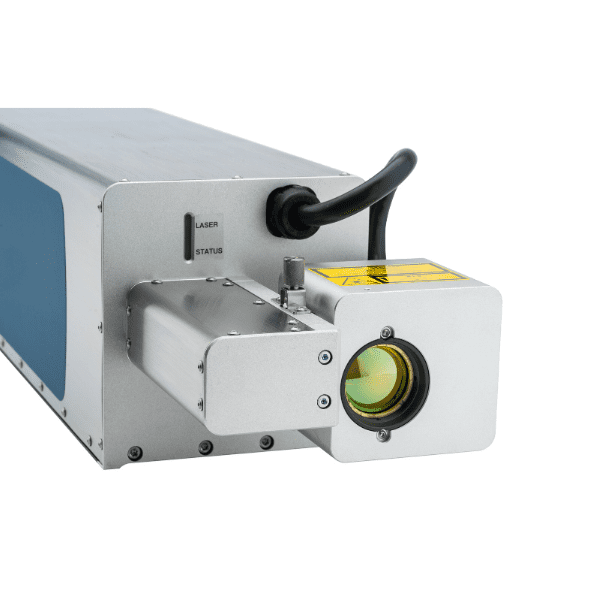

Small Footprint and Effective: The integrated scan head and controller are housed together. The flush lens design fits into the smallest available spaces.
Technical Information
| D310 | D310e | |
|---|---|---|
| Characters per Second * | 1.000 | 1.000 |
| Line Speed * | 350 m/min | 350 m/min |
| Number of Text Lines * | Unlimited | Unlimited |
| Fonts | Multilingual, including Unicode | Multilingual, including Unicode |
| Marking Field (mm) | 58×58 – 68×68 – 84×84 – 102×102 – 136×136 – 180×180 | 58×58 – 68×68 – 84×84 – 102×102 – 136×136 – 180×180 |
| Laser Tube Type | Black – Red – Blue | Black – Red – Blue |
| Laser Power | 30 W – 25 W – 20 W | 30 W – 25 W – 20 W |
| Laser Wavelength | 10.6 μm – 10.2 μm – 9.3 μm | 10.6 μm – 10.2 μm – 9.3 μm |
| F-theta Lens Options (mm) | Focal Length = 80 – 100 – 120 – 150 – 200 – 250 | Focal Length = 80 – 100 – 120 – 150 – 200 – 250 |
| Laser Class | Class 4 | Class 4 |
| Integrated Aiming Beam | No | Sì** |
| Axial Option | No | Sì** |
| Laser Housing | Stainless Steel and Anodized Aluminum | Stainless Steel and Anodized Aluminum |
| Weight & Dimensions | 21kg – 170x170x650 mm | 25kg – 200x180x800 mm |
| Electrical Specifications | 100-230V 50-60Hz (tested at 85-265VAC 47-63Hz) | 100-230V 50-60Hz (tested at 85-265VAC 47-63Hz) |
| Max Power Consumption | 1000VA | 1000VA |
| Laser System | Standard (fan cooled) | IP55 (compressed air cooling) |
| Operating Temperature | 5-45°C | 5-45°C |
| Relative Humidity | Max. 90% RH, non-condensing | Max. 90% RH, non-condensing |

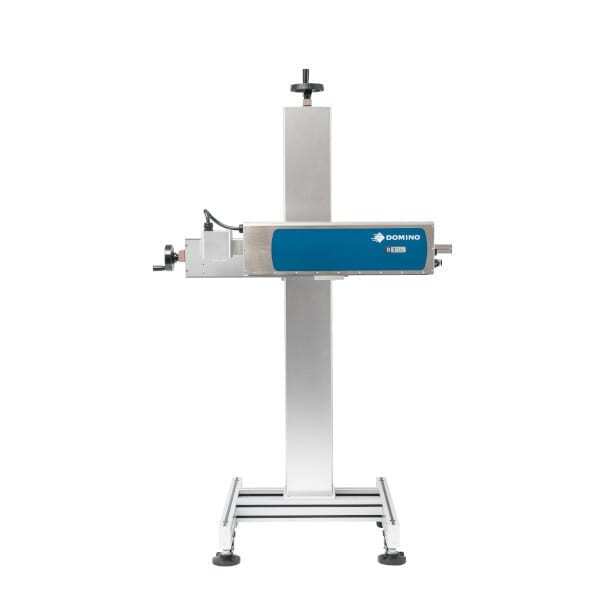

| Optional | Emergency Stop, Beacon, Laser Stand, Fume Extractor, Safety Guards | Emergency Stop, Beacon, Laser Stand, Fume Extractor, Safety Guards |
| Product Detection Inputs | Sensor NPN / PNP / 24V | Sensor NPN / PNP / 24V |
| Product Speed Detection | Differential Encoder / NPN / PNP | Differential Encoder / NPN / PNP |
| Input Signals | Laser Start / Mark Control / Mark On / Programmable Input / User Input | Laser Start / Mark Control / Mark On / Programmable Input / User Input |
| Output Signals | Laser Ready/Busy; Fume Extractor Control; User Output; Beacon | Laser Ready/Busy; Fume Extractor Control; User Output; Beacon |
| Interface | Ethernet – 1 x RJ45 | Ethernet – 1 x RJ45 |
| Optional User Interface | ControlPanel touch screen 10″ (IP65) – Windows 10 PC/HM | ControlPanel touch screen 10″ (IP65) – Windows 10 PC/HM |
| User Interface Language | English, Italian (Operator Selectable) | English, Italian (Operator Selectable) |
| Operating System | Laser: Linux | User Interface Windows 10 | Laser: Linux | User Interface Windows 10 |
| User Interface Software | LM Editor QS Quick Step | LM Editor QS Quick Step |
* Characters per second and production line speed depend on material surface and coding content
** Aiming beam not available with 80 mm and 100 mm lenses
Maximum Flexibility, Even in Tight Installations
The new D-Series laser printers deliver 360-degree installation options. The compact and fully adjustable i-Tech scan head enables D-Series lasers to fit in areas with minimal space.
A new IP65-rated model gives outstanding protection for use in tough industrial conditions. Featuring extensive connectivity options and a straightforward user interface, the D-Series can be managed from any workstation, including via remote access.
Wide Range of Applications
The D-Series laser printers can engrave unlimited lines of text in all orientations, providing a large variety of font types and sizes.
They are well-suited for coding graphics, barcodes, and 2D symbols, including QR and DataMatrix Codes.
All codes are permanently marked, suitable for numerous types of materials, and perfect for fast production speeds.
Adaptable for Seamless Production Line Integration
Flexibility is essential, so the D-Series lasers are engineered with a compact footprint.
The modular design allows for quick installation, and makes it easy to fit into your existing process.
- Easy to install: Integrated mounting rails and small overall size make setup simple and secure.
- Highly flexible: The i-Tech scan head connects to the laser tube via multi-position mounting, and can rotate in 90-degree steps for many installation possibilities.
- Space-efficient build: The reduced size lets you install in spots where most laser printers won’t fit.
Boosted Productivity, Reduced Downtime
The D-Series printers are operated by:

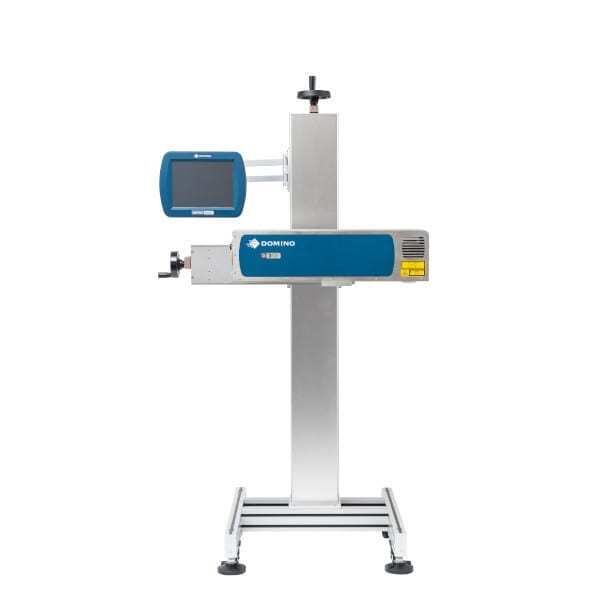

- An intuitive Touch Panel
- A web interface compatible with any industrial PC
- Your production line’s control system for integration flexibility
Simple Operation
After logging in, setup is immediate, and coding messages can be created or changed and updated instantly on the system.
Production data is uploaded or downloaded right from the control panel using USB or Ethernet.
Engineered for Durability
An optional IP65 version delivers increased protection, ensuring long-term operation in demanding industrial settings. The anodized aluminum and stainless-steel frame provides excellent longevity.
Unmatched Speed & Precision
i-Tech RapidScan technology accelerates coding speed by up to 20%, making D-Series perfect for ultra-fast production lines.
Engineered for intricate codes, delivering superior results even on difficult surfaces.

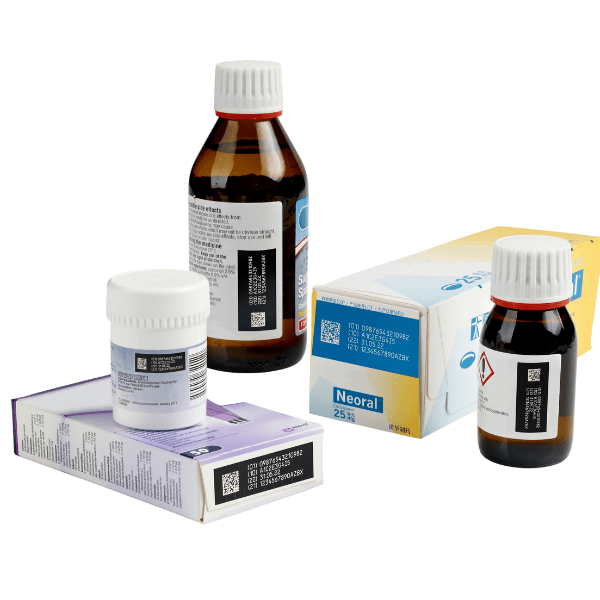

Pharma Option: Offers detailed modification logging and secure, password-protected access, supporting 21-CFR Part 11 and GAMP requirements.
Available with a validation package for full compliance with strictest quality standards.
Codentify® ready: Handles 12-character unique codes for authentication and tax compliance needs.

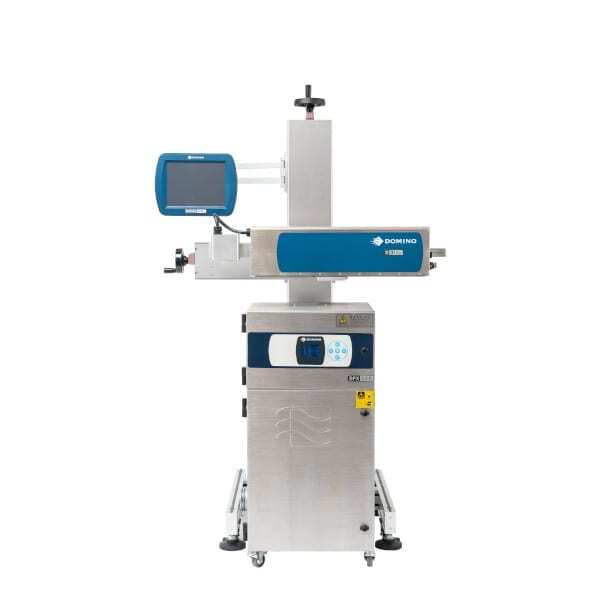

Fume Extraction Solutions: Effective fume and particle extraction is vital for workplace safety and cleanliness.
The Domino DPX extraction system integrates perfectly with D-Series lasers, creating a comprehensive, efficient, and straightforward solution.
