Domino Ax150i Continuous Inkjet Printer
The Domino Ax150i: Designed for High-Speed, Simplicity, and Exceptional Print Accuracy
The Domino Ax150i continuous inkjet printer guarantees rapid and precise printing for batch codes, expiration dates, and all codes needed for complete product traceability.
Furthermore, it can be adapted to fit a wide range of production applications.
The advanced interface and Domino QuickStep software offer exceptional ease of use, reducing the risk of user mistakes. The Ax150i can be customized with optional add-ons that can be installed any time, enabling performance tailored to the demands of each production setup.
The user interface is both straightforward and efficient, empowering operators to update details for each batch with just a few clicks.
Ax150i is perfect for both new businesses and established manufacturers expanding their capacity.
Why Select the Domino Ax150i for Industrial Continuous Inkjet Coding?
Perfect synergy between ink and printhead. Delivers crisp, high-resolution 9-drop text at the production speed of a 7-drop print.
The Ax150i’s cartridge system allows for longer operation and makes changing ink fast and mess-free.
The i-Pulse printhead ensures precise drop placement at top speed, optimizing ink use and reducing environmental impact.
Technical Info
Domino printers are certified and distributed in more than 100 countries globally. Certifications: CE, NRTL, CB, FCC 47CFR Part 15B.

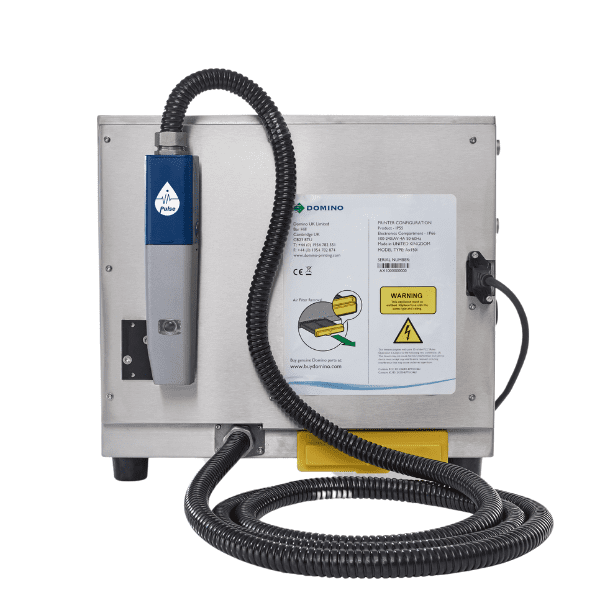

Printhead
| Type | i-Pulse |
| Nozzle sealing technology | ✓ |
| Nozzle size | 60 µm |
| Maximum resolution (dpi) | 82 |
| Format | Straight |
| Conduit length | 3 m |
| Minimum conduit bend radius | 65 mm |
Cabinet
| Material | Stainless steel 304 (5 sides), Nylon (door) |

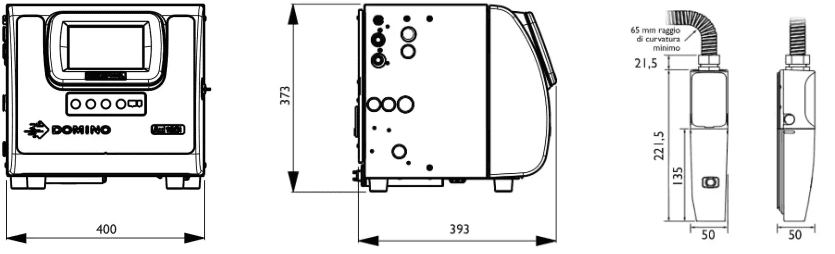

| Dimensions (WxHxD) | 400 x 373 x 393 (mm) |
| Dry weight | 16 kg |
| Power supply | 100-240 v : 4 A 50-60 Hz |
| Power consumption | 40 Watts (idle); 80 Watts (printing) |
| Product detection input (x1) | ✓ |
| Encoder input (x1) | ✓ |
| RFID | 13,56 MHz 1,3 uW ERP |
Inks

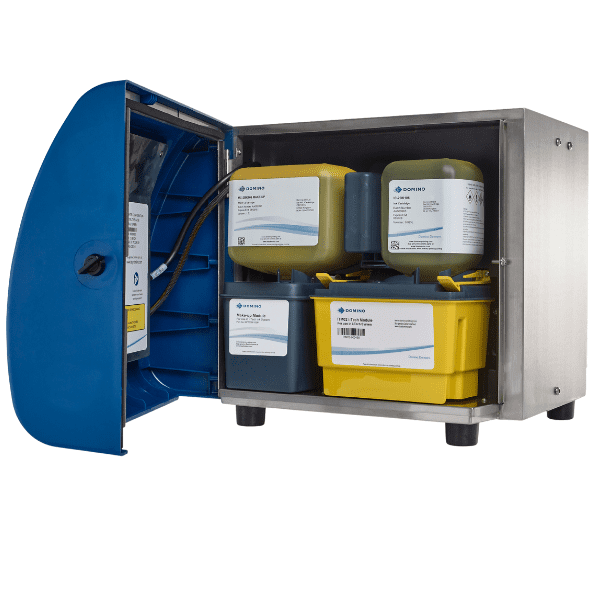

| Ink cartridge capacity | 825 ml |
| Make-up cartridge capacity | 1,200 ml |
Connectivity
| Domino Protocols | Codenet, Intercomm 0 |
| PC software package | QuickDesign V5 & V6 compatible |
| Webserver | ✓ |
| Domino Cloud compatible* | ✓ |
*Requires optional Communication Package
Operation

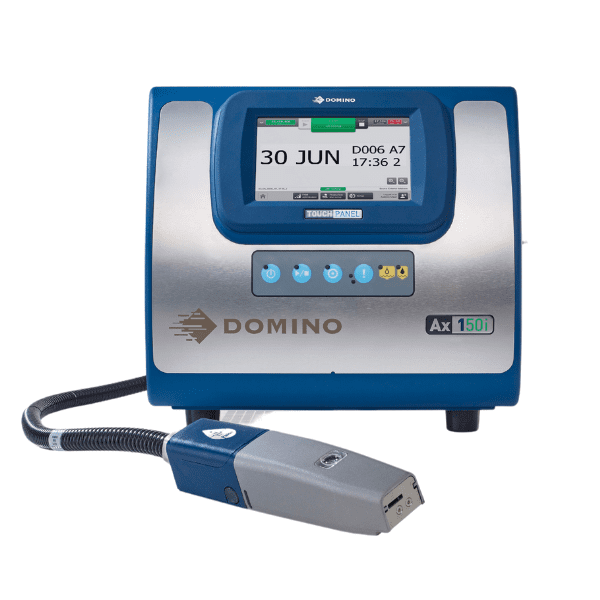

| User interface | 7’’ color touchscreen (optional) |
| Software | QuickStep 3 |
| Operator-friendly | ✓ |
| One-button start and stop | ✓ |
Consumables
| Automatic cartridge recognition | ✓ |
| Intelligent level monitoring | ✓ |
| Make-up cartridge lifespan** | 171 hours |
| Cartridge replacement | Operator task – Takes 20 seconds – No line stoppage required |
Maintenance
| Maintenance type | Maintenance-free – ITM system |
| ITM replacement frequency° | 12 months |
| ITM replacement | Operator task – Takes less than 10 minutes of line stoppage |
Environment
| Operating temperature° | 5-45°C |
| Humidity | 0-90% RH |
| Protection rating (cabinet) | IP55 |
| Options for harsh environments | IP65 Printhead Cover (for washdown) Positive air pressure on the printhead (for dusty environments) |
* Speed, height, and number of lines declared using the Raster Extension Package.
** Make-up cartridge replacement frequency with MEK-based ink at 21°C.
^ Drop size may vary depending on the surface.
° Depending on the type of ink.
Speed (m/s)*
| 1 Line – 5-drop characters | (fastest) Std DPI 5.1 – Max DPI 3.8 |
| 2 Lines – 7-drop characters | Std DPI 1.3 – Max DPI 0.9 |
| 2 Lines – 9-drop characters (high quality) | (high quality) Std DPI 1.0 – Max DPI 0.7 |
| 1 Line – 24-drop characters | (ideal for 2D Code) Std DPI 0.5 – Max DPI 0.4 |
Dimensions
| Maximum number of lines | 5 |
| Print height (in drops)* | Up to 32 drops |
| Print height (in mm)* | Up to 20 mm |
| Deposited print drop size^ | 0.31 mm |
Code Format
| Text | Full Unicode support |
| Graphic Import* | .bmp Integrated Logo Editor |
| 1D Barcodes | EAN 8, EAN 13, UPC A, UPC E, Code 39, Code 93, Code 128, Code 2 di 5, ITF-14, GS1-128 |
| 2D Barcodes | Datamatrix, QR Code, Dot Code, Han Xin, Postnet |
* (Speed and height declared using the Raster Extension Package)
Hardware Packages
Printer Status Package Option

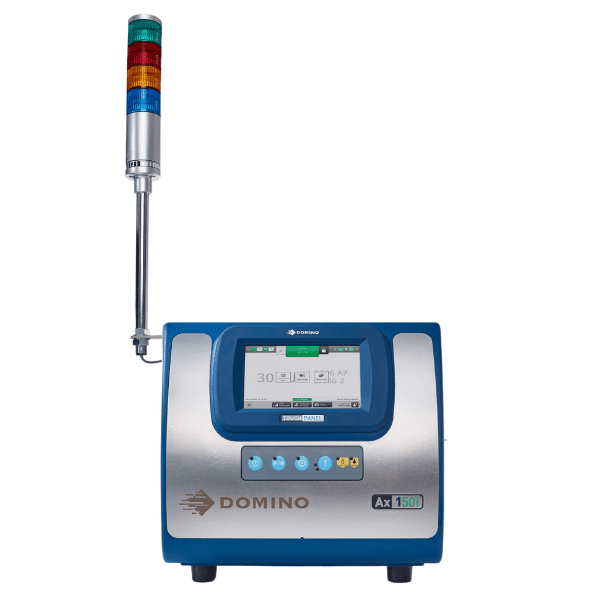

4-color tower light output (x1)
Clean contact output for 4 printer status states (x1)
Communication Package Option
USB port on cabinet (x1)
Ethernet RJ45 port (x1)
RS232 Package Option RS232 Package Option
GPIO Package Option 4 inputs / 4 outputs (x1)
Performance Package
Raster Extension Package: High-speed and high-quality raster printing (HQ types)
Accessories
Enhance the capabilities of the Domino Ax150i by selecting the right accessories for your workflow.
